CLh 3000C is a servo controlled Class D installation amplifier that delivers reliable continuous power to 100V constant voltage systems in a form factor that keeps rack weight low and thermal management straightforward. Balanced outputs deliver common mode noise cancellation across both channels, and Power Factor Correction makes it compliant for markets that require PFC. The ACL Active Clip Limiting system monitors the output continuously and reduces gain automatically at the onset of clipping, protecting both the amplifier and the connected load, with over current, DC voltage, channel active, and temperature warnings providing additional layers of security. Remote turn on, sequential turn on, and a switchable built-in low cut filter make it a practical choice for multi-amplifier commercial installation projects of all sizes.
- Class D servo-controlled topology; 1,250W per channel continuous at 100V; minimum load impedance 4 Ohms; frequency response 20 Hz to 25 kHz (-3 dB)
- ACL Active Clip Limiting with over-current protection, DC voltage, channel active, and temperature warning
- Lightweight switch mode power supply with Power Factor Correction; remote turn on and sequential turn on

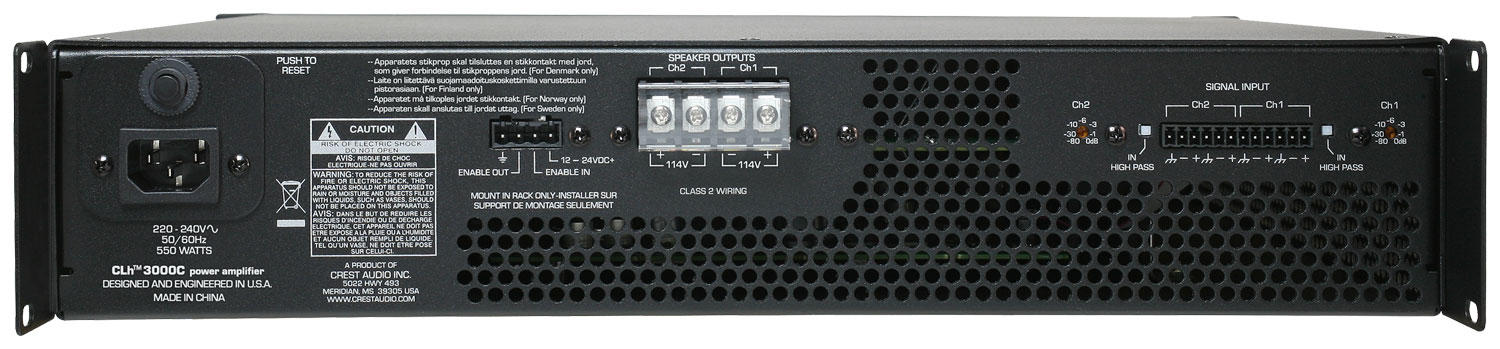

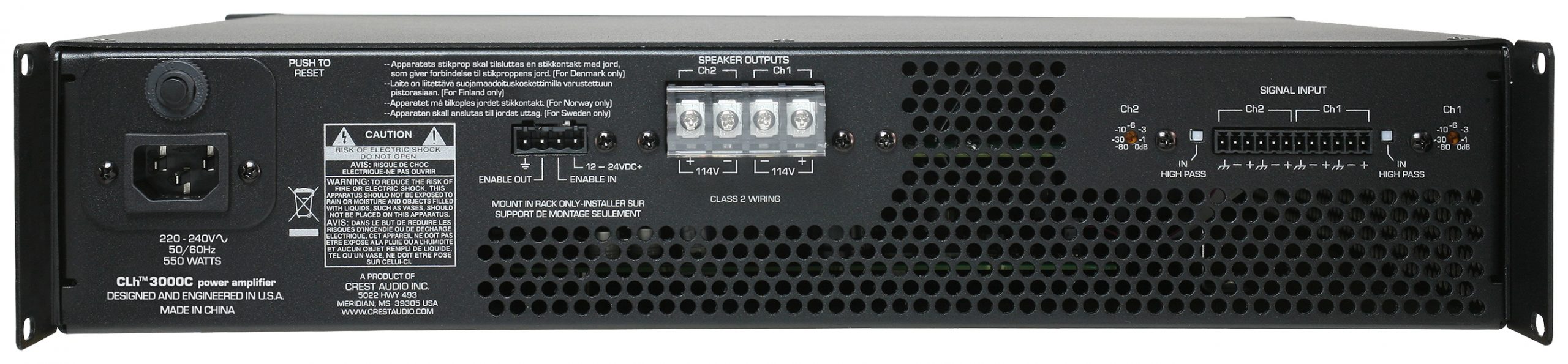

- Switchable built-in low cut filter; inputs via 2x 3-pin Euro Connector; outputs via 2x 2-pin Barrier Strips
