CPL 5C+ combines a premium 5" woofer with a coaxially mounted 1" Neodymium compression driver in a design that delivers consistent sound character all the way to the edges of its 80 degree coverage pattern, something a standard two way configuration cannot guarantee. The advanced internal crossover maintains EQ and driver protection, and the 16 Ohm impedance makes daisy chaining multiple cabinets across a distributed system straightforward. Its prime grade 15mm plywood enclosure is finished in textured polyurea paint and protected by a heavy duty steel grille backed with acoustic foam, making it durable enough for both install and touring use. Three M8 suspension points, a U-Bracket, and a choice of 4-pin Twist Lock or Euroblock connectivity mean it is ready for virtually any mounting scenario right out of the box.
- Two way coaxial passive loudspeaker with 5" woofer (1.5" VC) and 1" Neodymium compression driver (1.4" VC); 80 x 80 degree coverage pattern; 92 dB sensitivity (1W/1m); 118 dB max SPL
- 100W RMS / 200W program / 400W peak power handling at 16 Ohms nominal impedance; frequency response 91 Hz to 20 kHz (-10 dB)
- Advanced crossover network with tweeter protection; consistent sound character across full rated coverage angle due to coaxial configuration

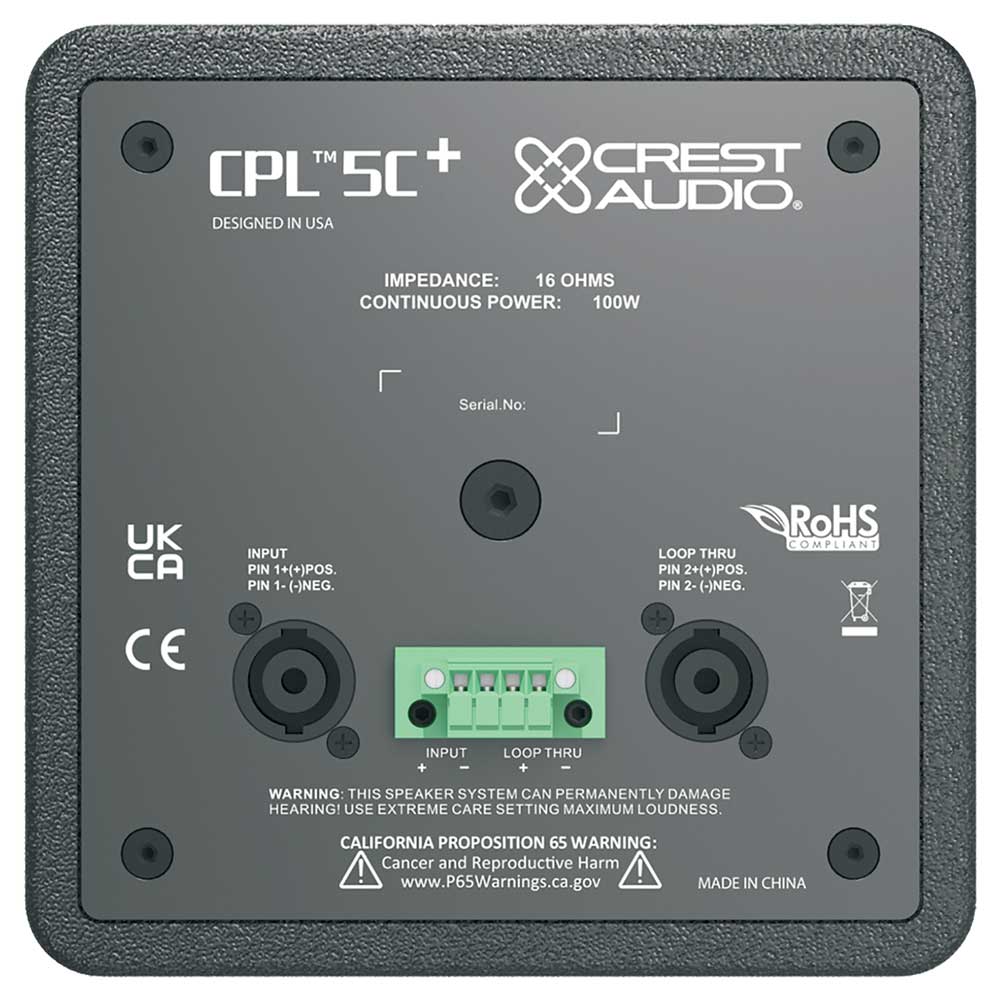

- Connectors: 2x 4-pin Twist-Lock (NL-4 style) and 1x 4-pin Euroblock with 2+/2- loop through
- 15mm plywood enclosure with textured polyurea paint and heavy duty steel grille; 3x M8 suspension points
