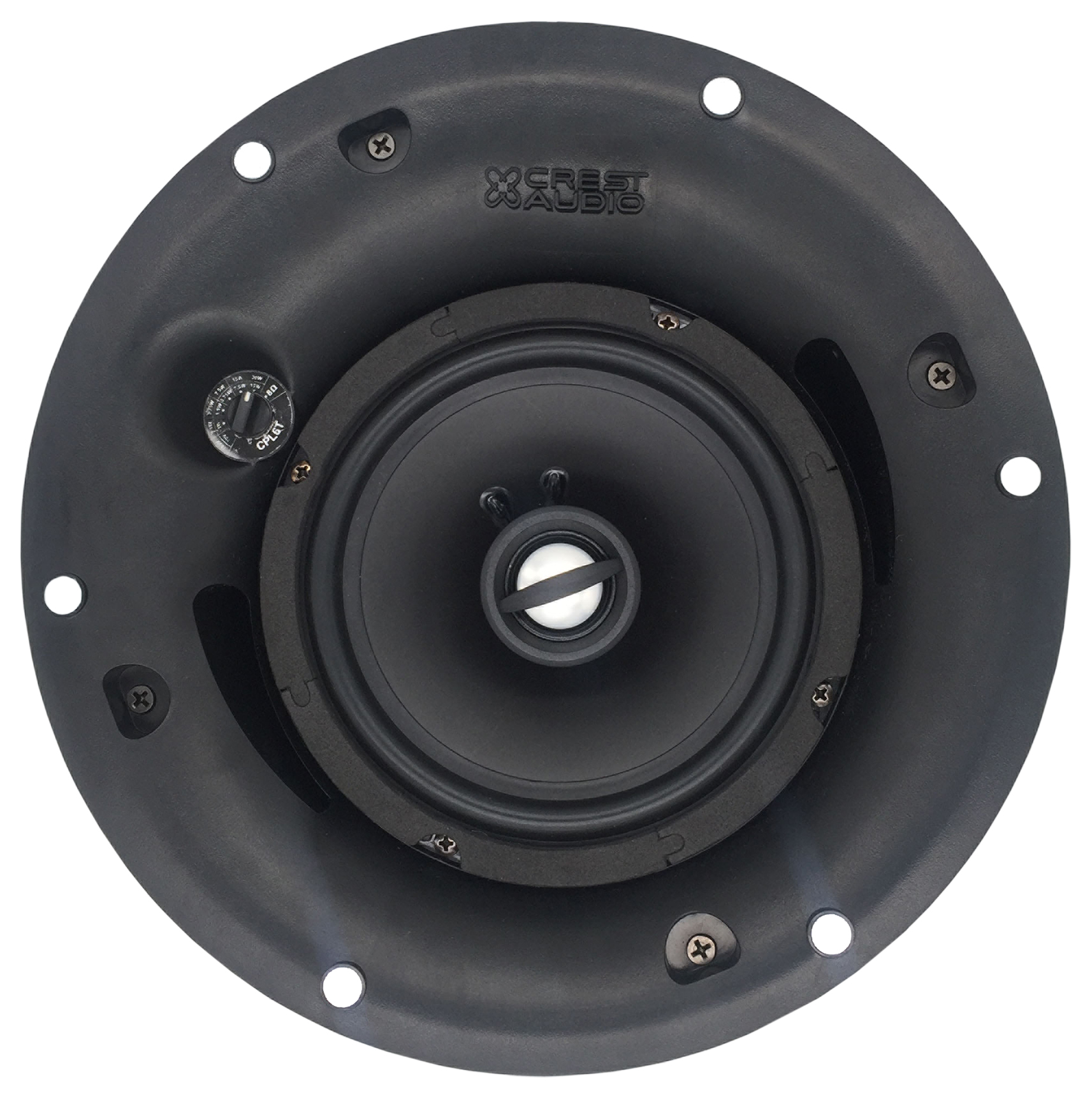

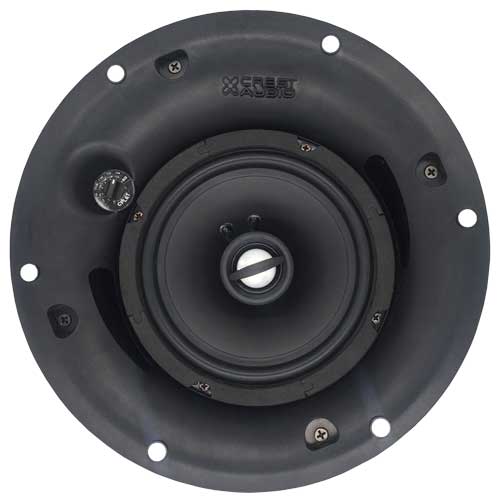

CPL 6T is a full range two way ceiling speaker built for commercial, corporate, and institutional spaces where the system needs to perform as well as it needs to look. The 6.5" PP cone woofer and 1" titanium soft dome tweeter cover 80 Hz to 20 kHz, and the aimable tweeter lets installers direct high frequency energy precisely toward the listening area without repositioning the cabinet. A five step tap selector allows quick 70V or 100V system configuration before or after installation, and the 8 Ohm bypass adds compatibility for low impedance setups. The magnetic front grille, 360 degree rotating logo, and steel fire-rated back can with 4 pin screw terminal for daisy chain wiring make it genuinely easy to install and finish to a professional standard.
- Two way ceiling speaker with 6.5" PP cone woofer (rubber surround) and 1" titanium soft dome tweeter; aimable tweeter; crossover at 4 kHz; frequency response 80 Hz to 20 kHz (-10 dB)
- 50W power handling at 8 Ohms; 88 dB sensitivity (±3 dB, 1m, 1W); recommended filter: 24 dB/oct Linkwitz-Riley at 80 Hz
- Selectable transformer taps at 70V: 15W, 7.5W, 3.75W, 1.9W, 1W; at 100V: 30W, 15W, 7.5W, 3.75W, 1.9W; combined 70/100V and low impedance operation

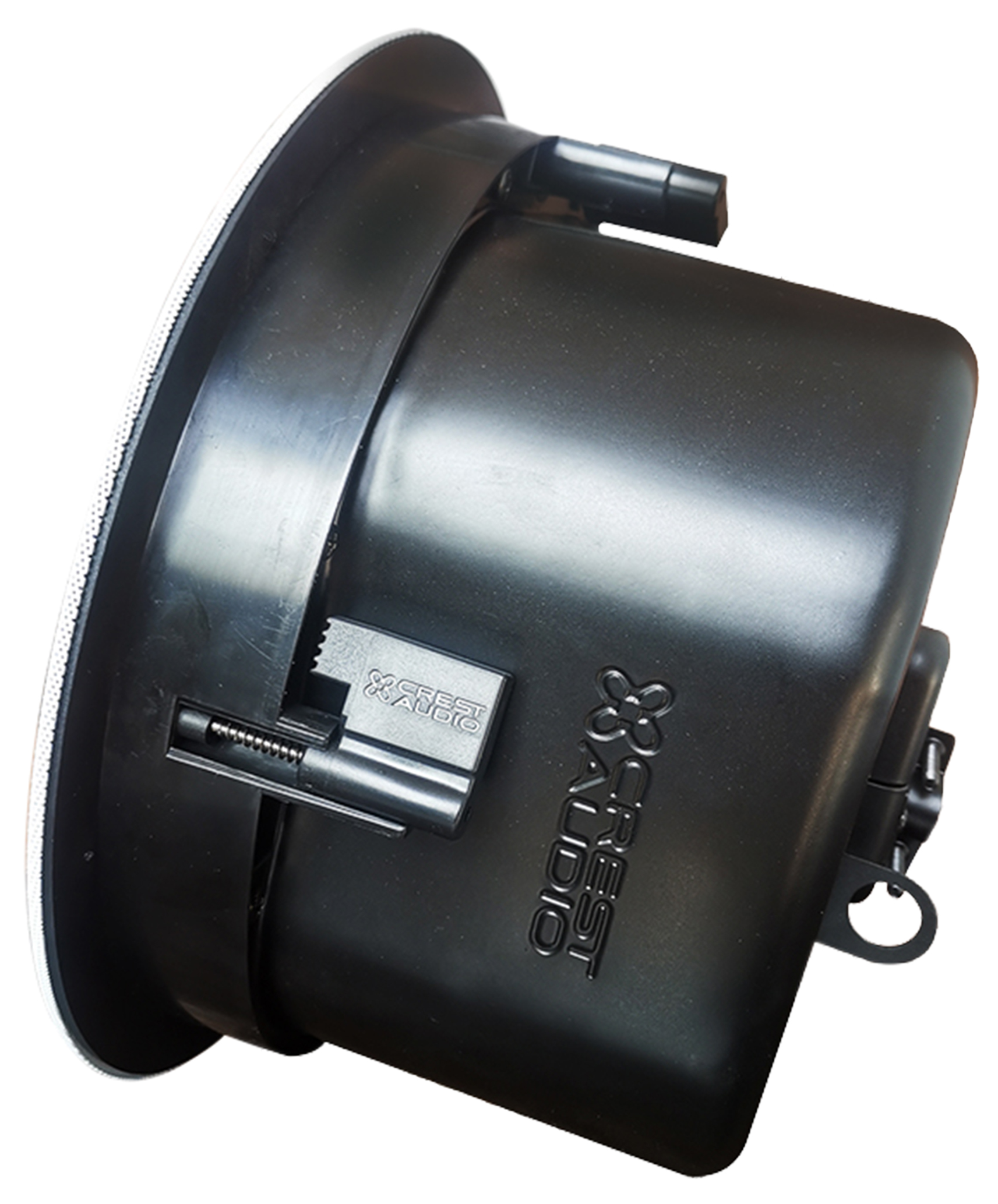

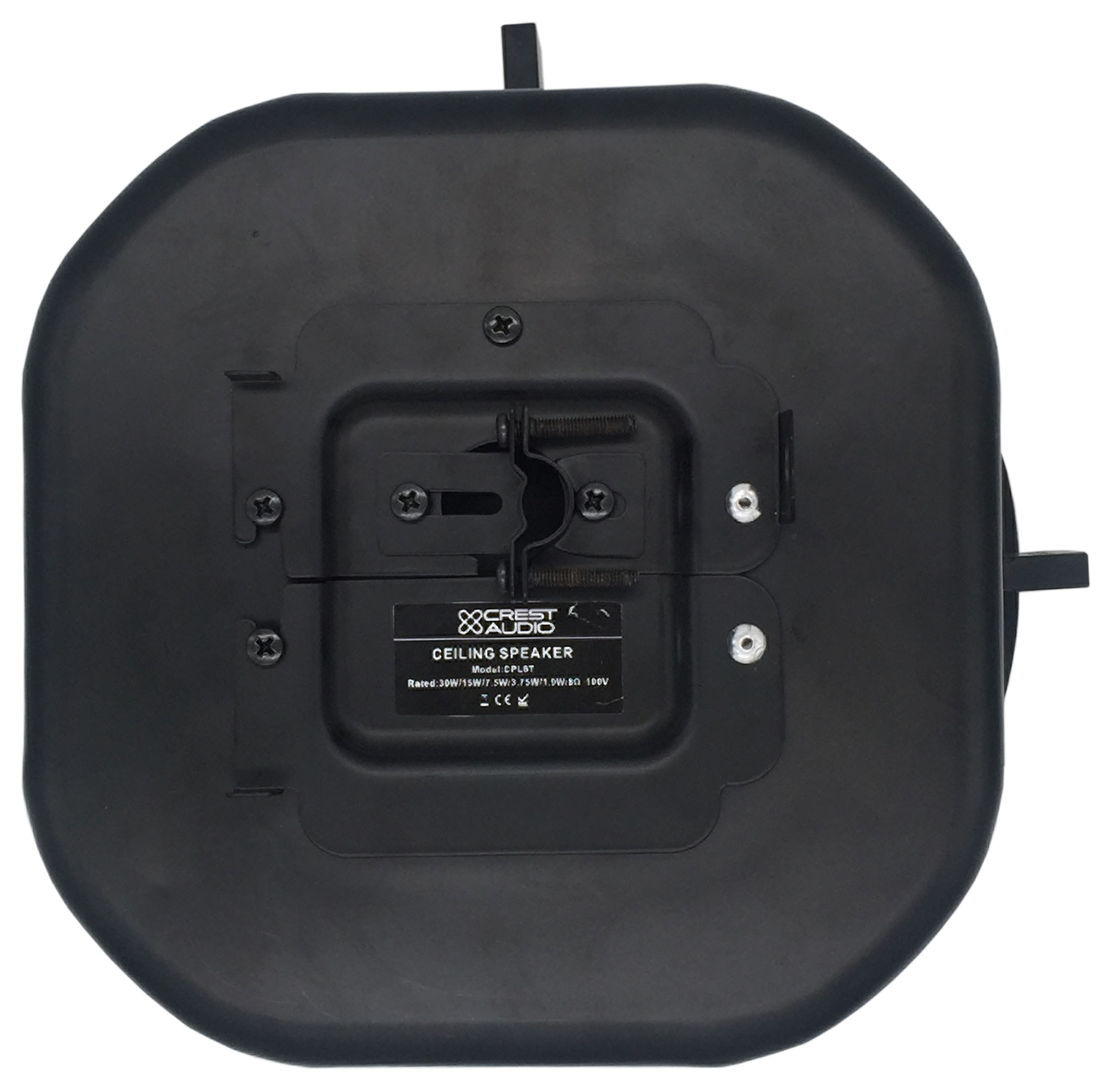

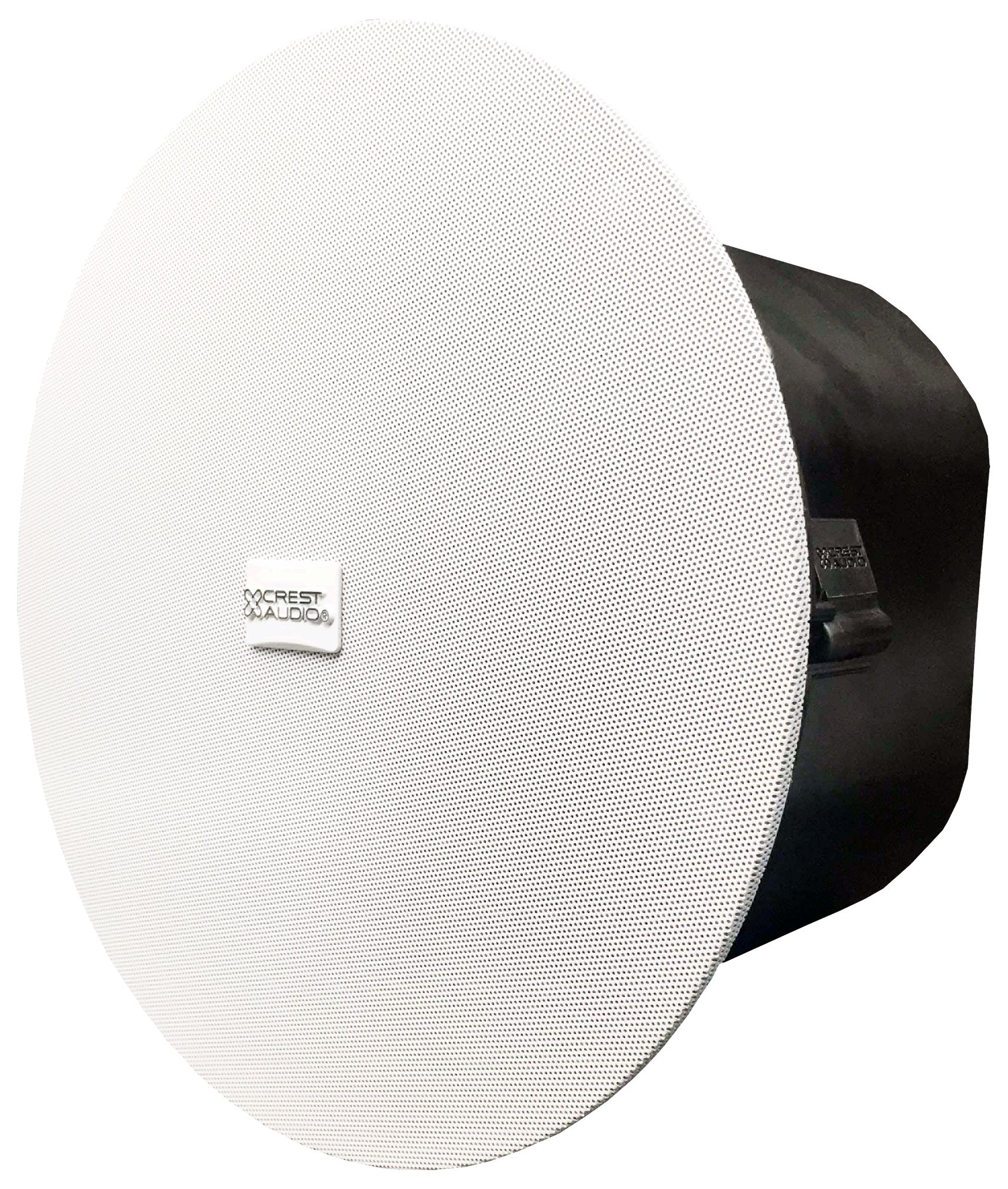

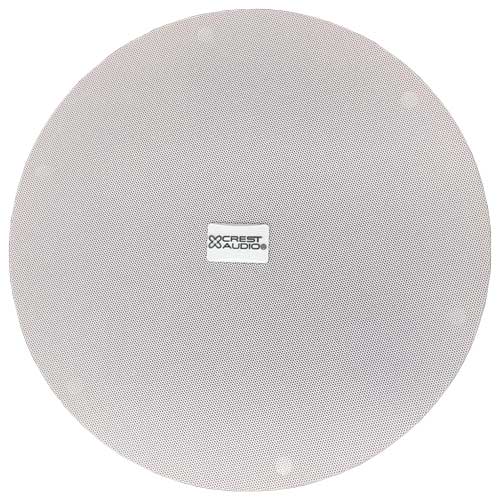

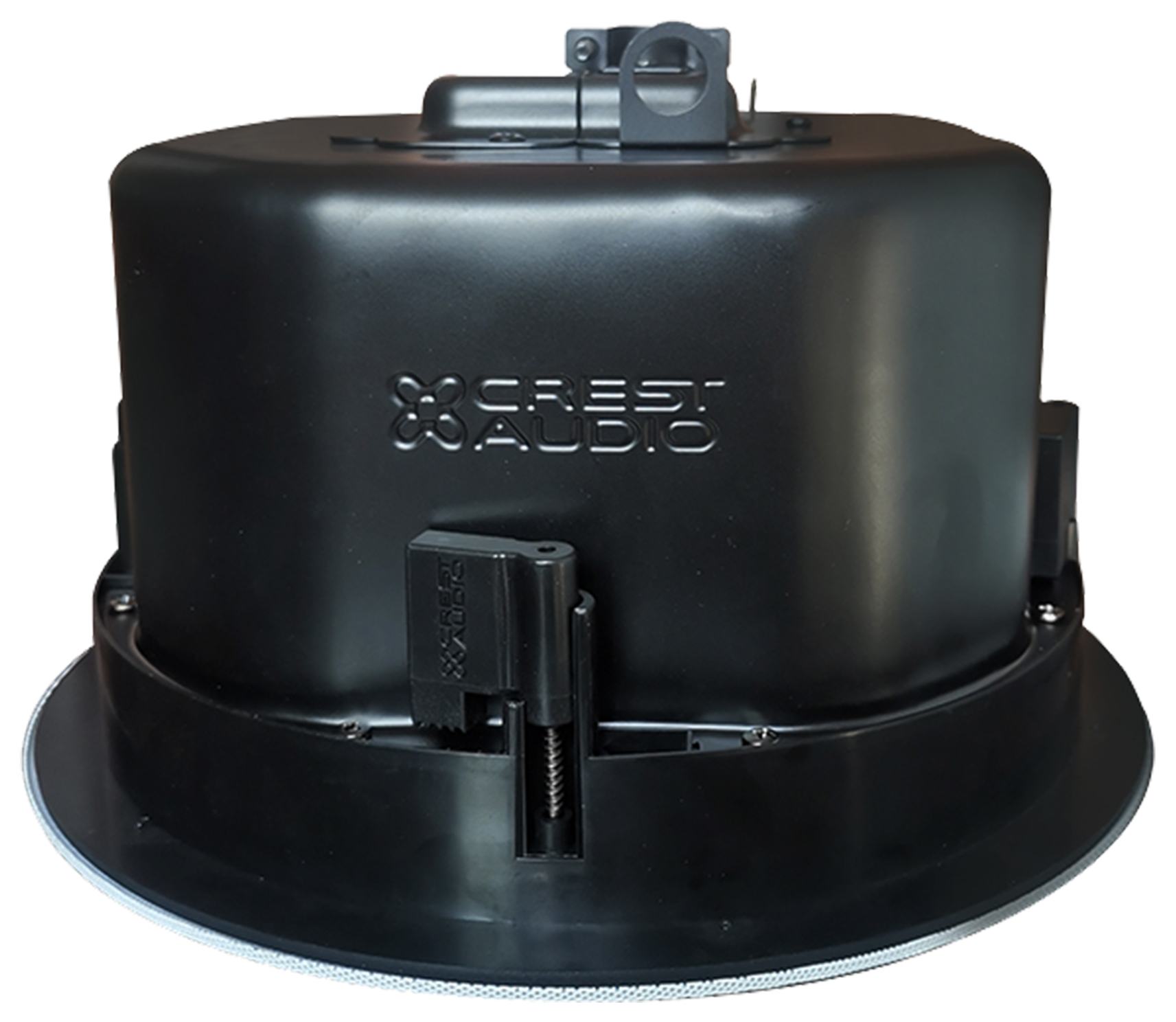

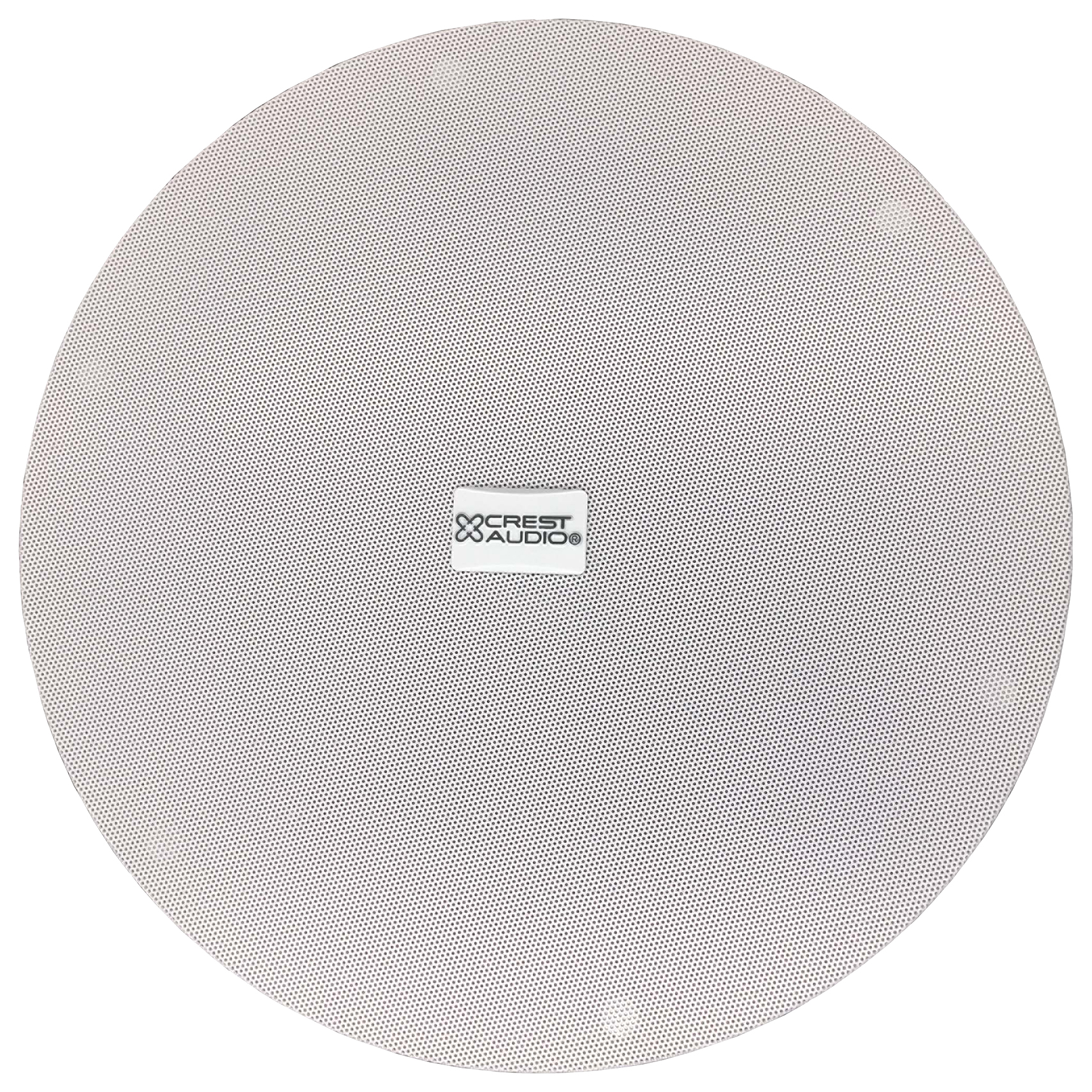

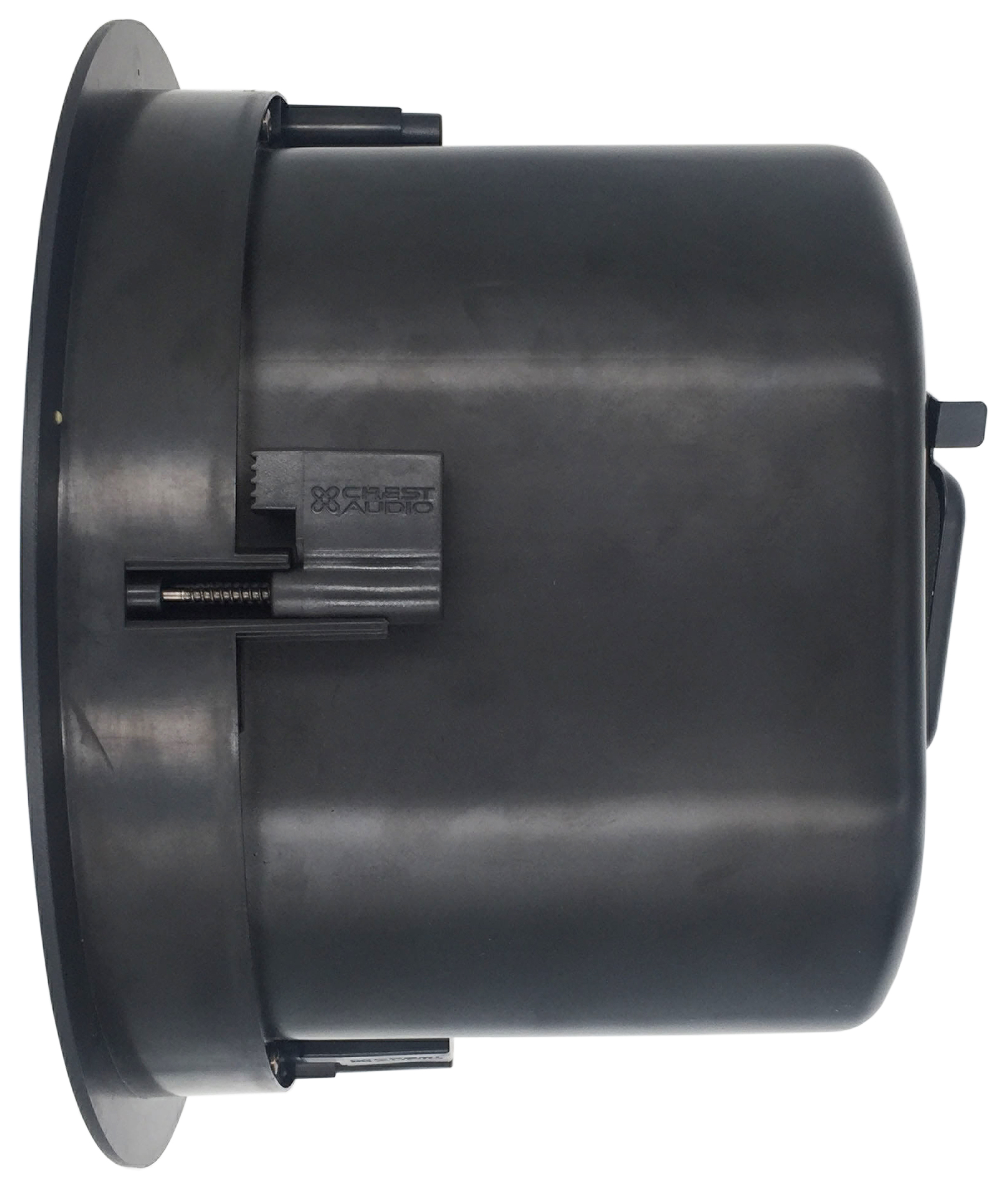

- Magnetic front grille; logo rotates 360 degrees; 4-pin screw terminal for daisy-chain wiring; steel fire-rated back can
- ABS housing; outside dimensions 10.83" (275 mm) diameter x 7.84" (199 mm) depth; cutout diameter 9.57" (243 mm)
