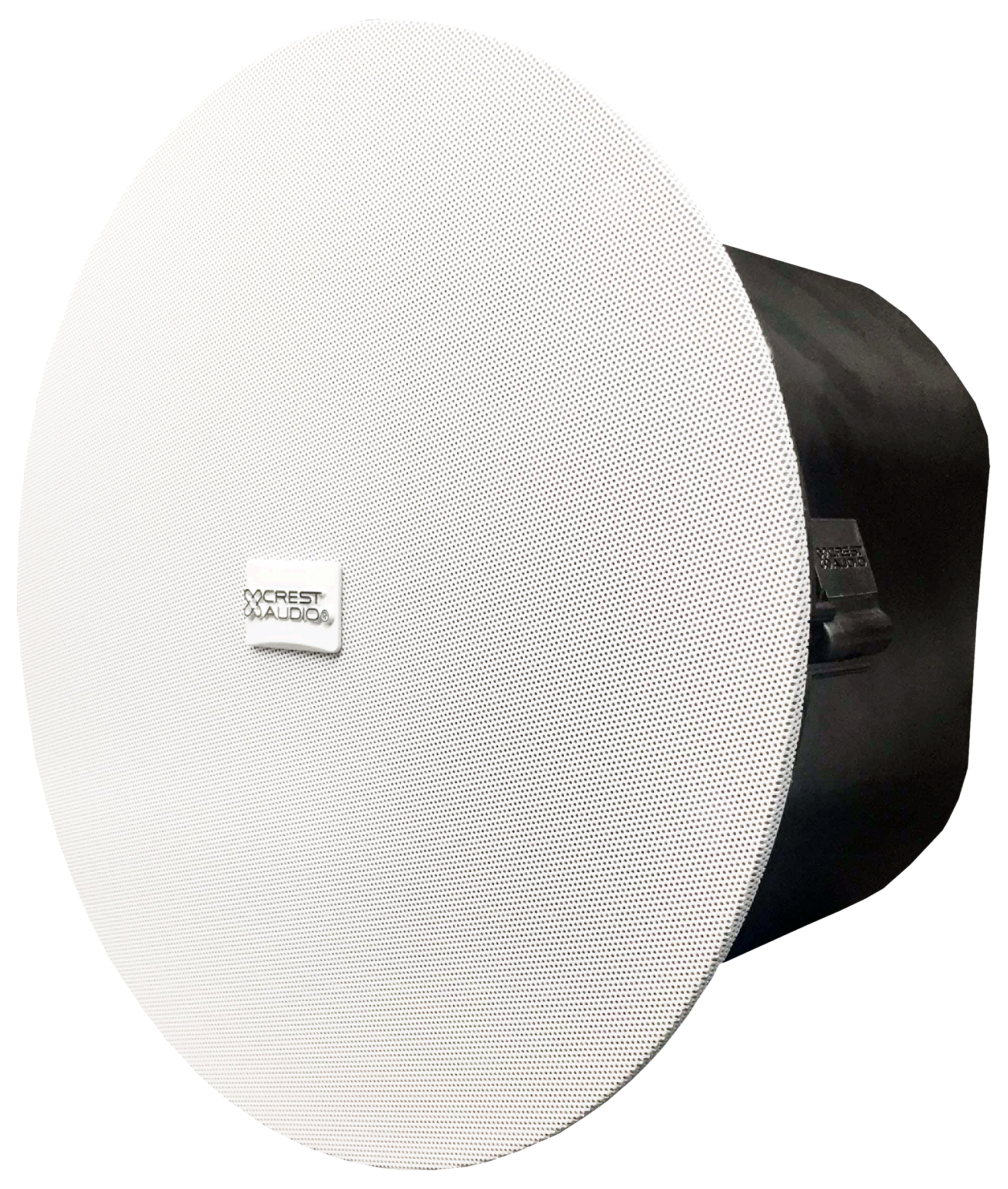

CPL 8T brings the same clean install philosophy of the CPL T series to spaces that need a larger driver for better low frequency extension and higher output headroom. The 8" PP cone woofer and 1" titanium soft dome tweeter with aimable high frequency delivery cover 75 Hz to 20 kHz, and the five step tap selector handles 70V and 100V system configuration with ease both before and after installation. A 4-pin screw terminal supports clean daisy chain wiring from within the steel fire-rated back can, and the magnetic front grille with 360 degree rotating logo means the finished result looks as considered as it sounds. Available in white to suit any interior finish.

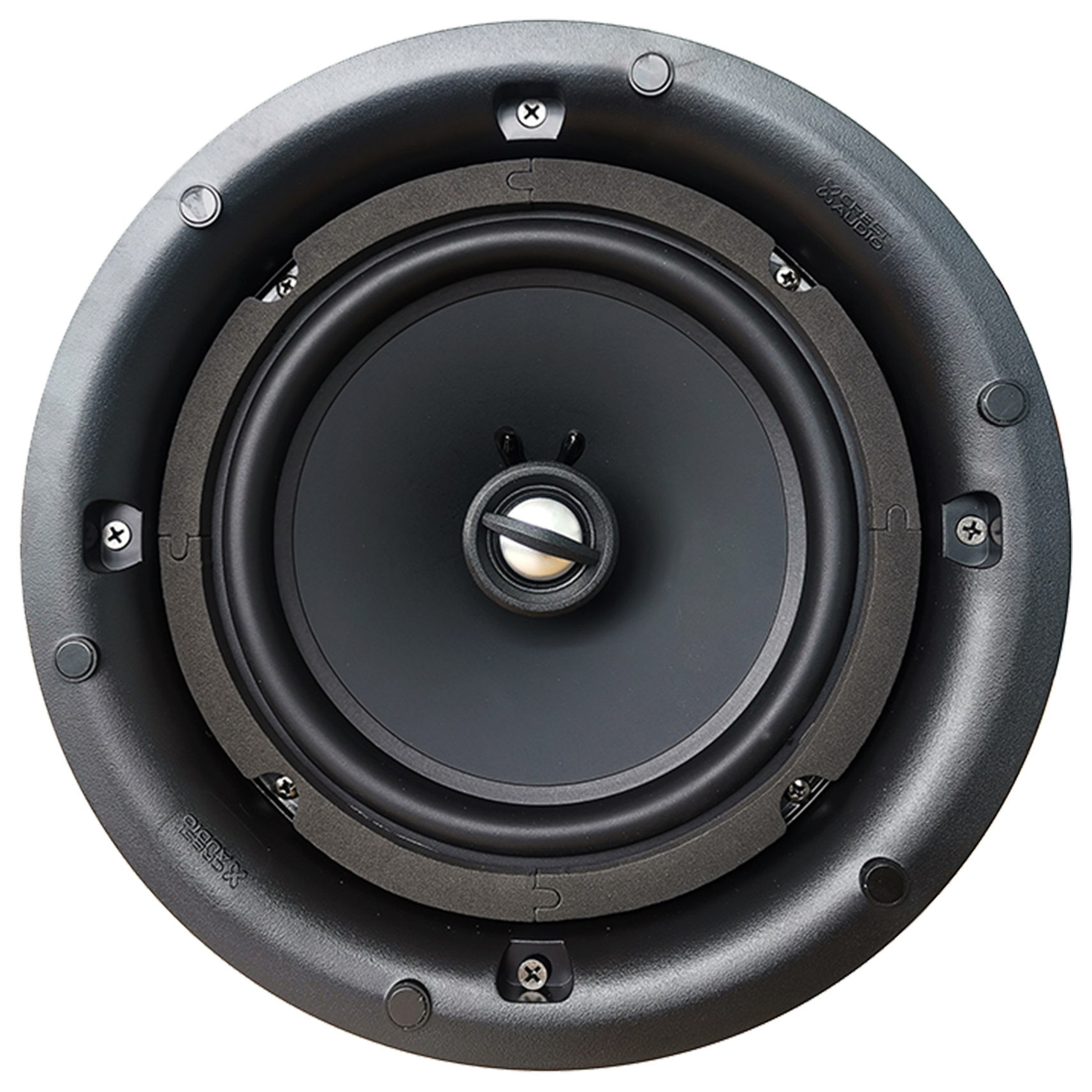

- Two way ceiling speaker with 8" PP cone woofer (rubber surround) and 1" titanium soft dome tweeter; aimable tweeter; crossover at 4 kHz; frequency response 75 Hz to 20 kHz (-10 dB)
- 90W power handling at 8 Ohms; 88 dB sensitivity (±3 dB, 1m, 1W); recommended filter: 24 dB/oct Linkwitz-Riley at 80 Hz
- Selectable transformer taps at 70V: 25W, 12.5W, 6.25W, 3.1W, 1.5W; at 100V: 50W, 25W, 12.5W, 6.25W, 3.1W; combined 70/100V and low impedance operation

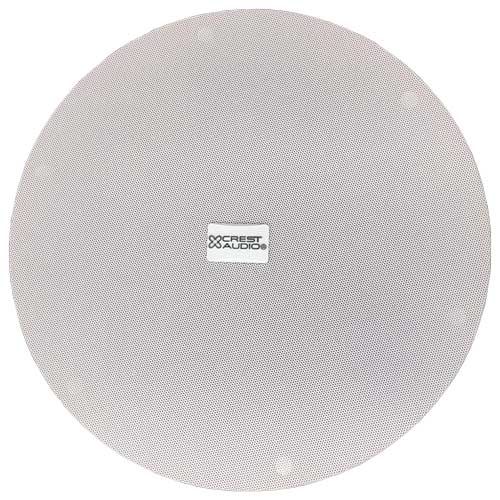

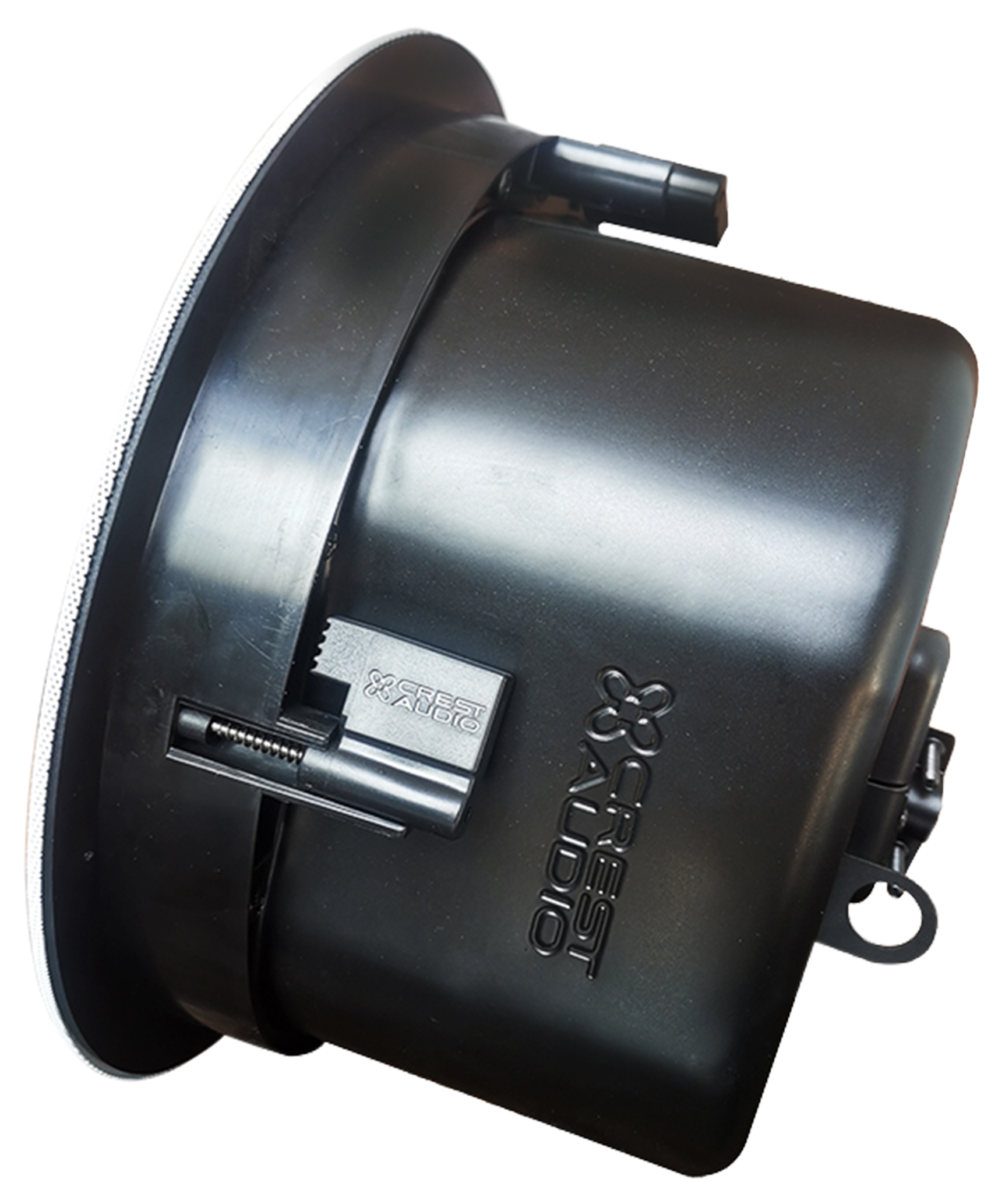

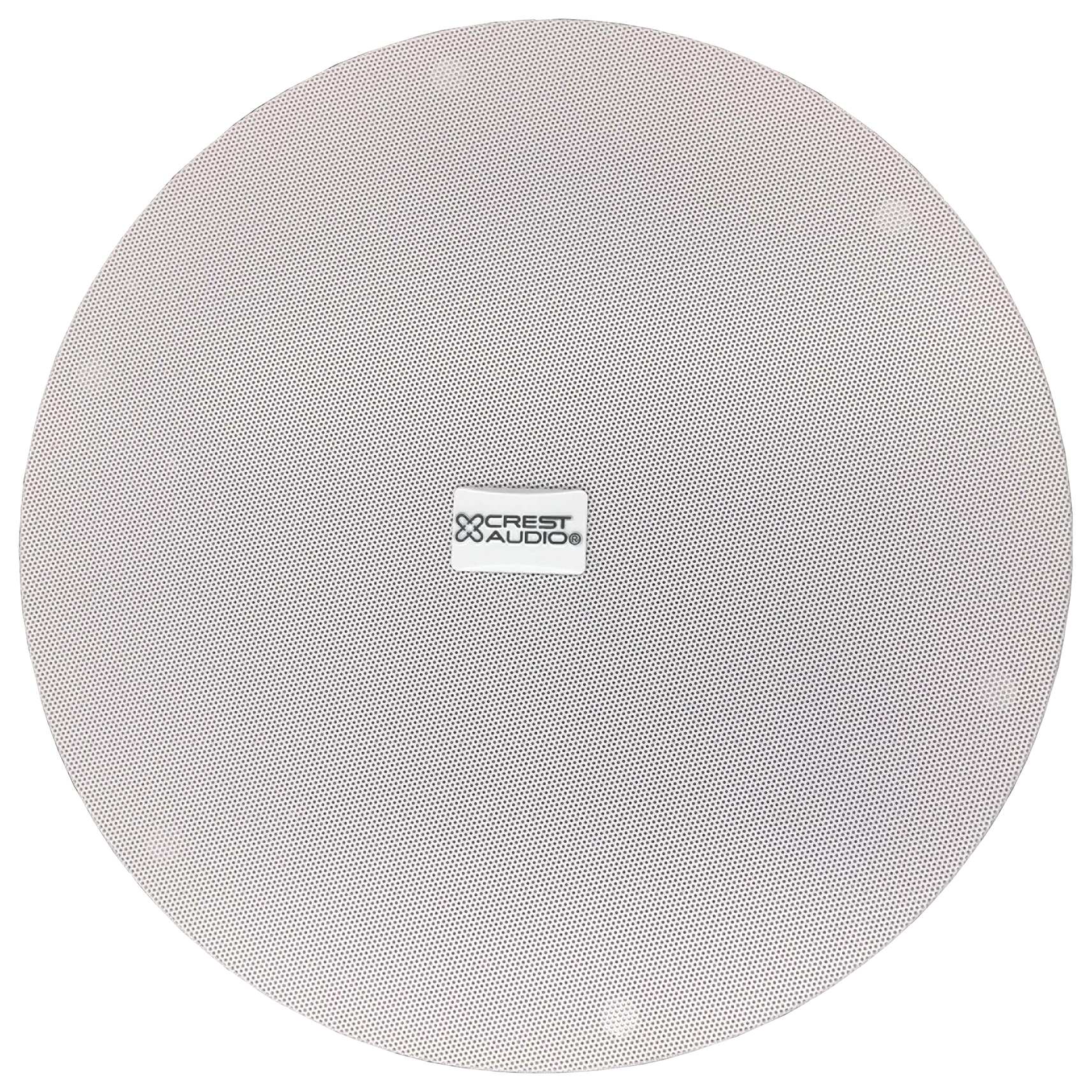

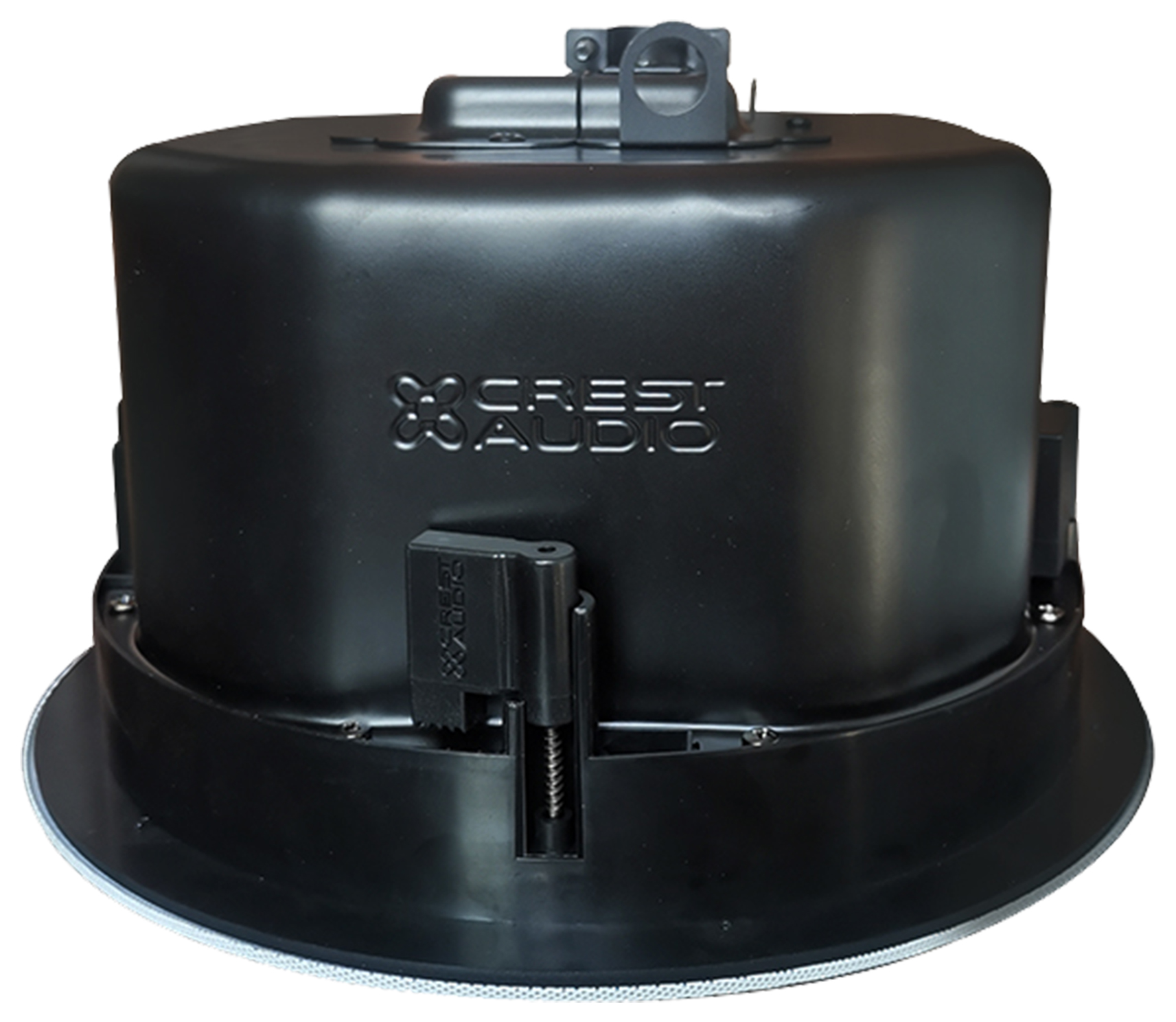

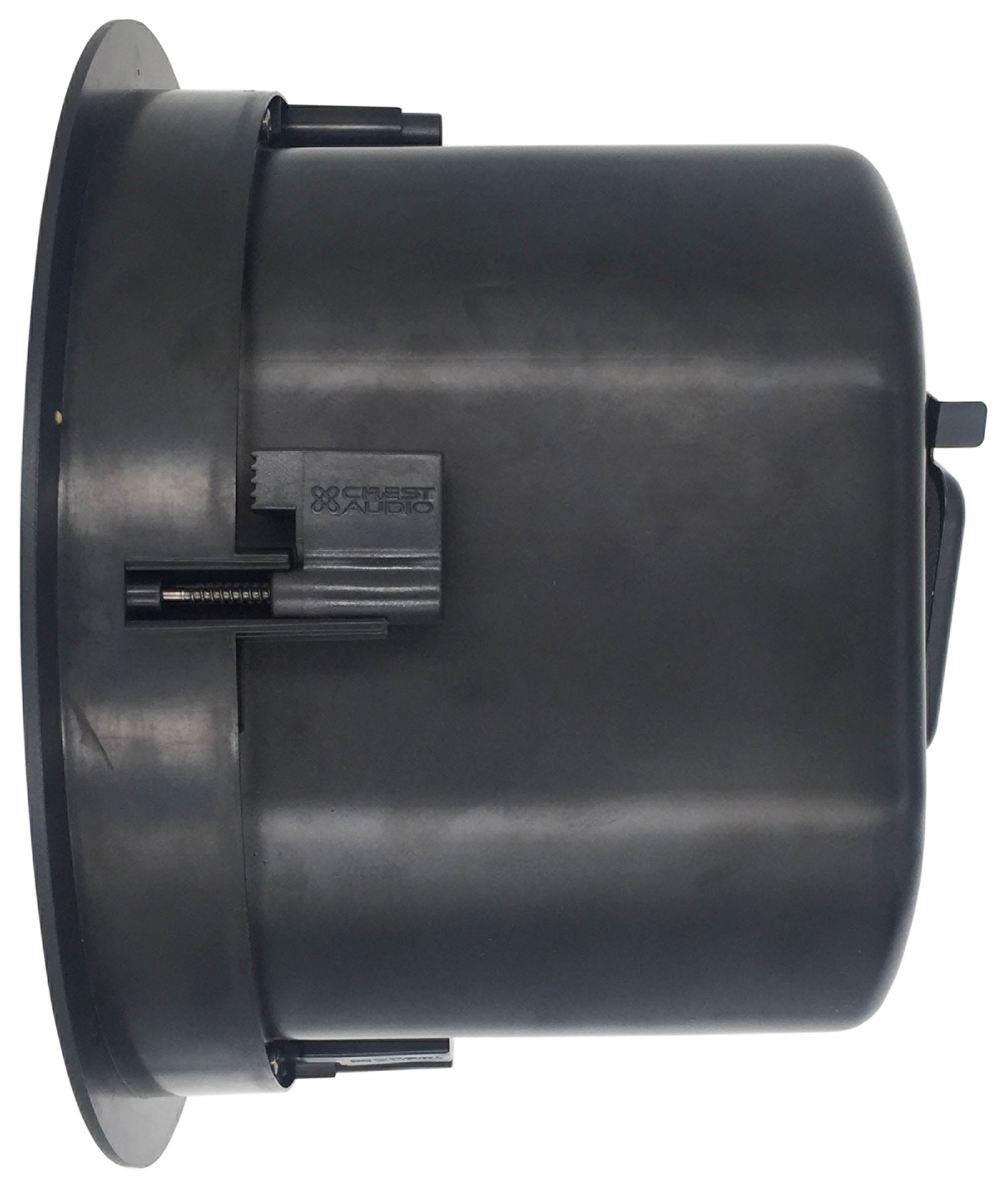

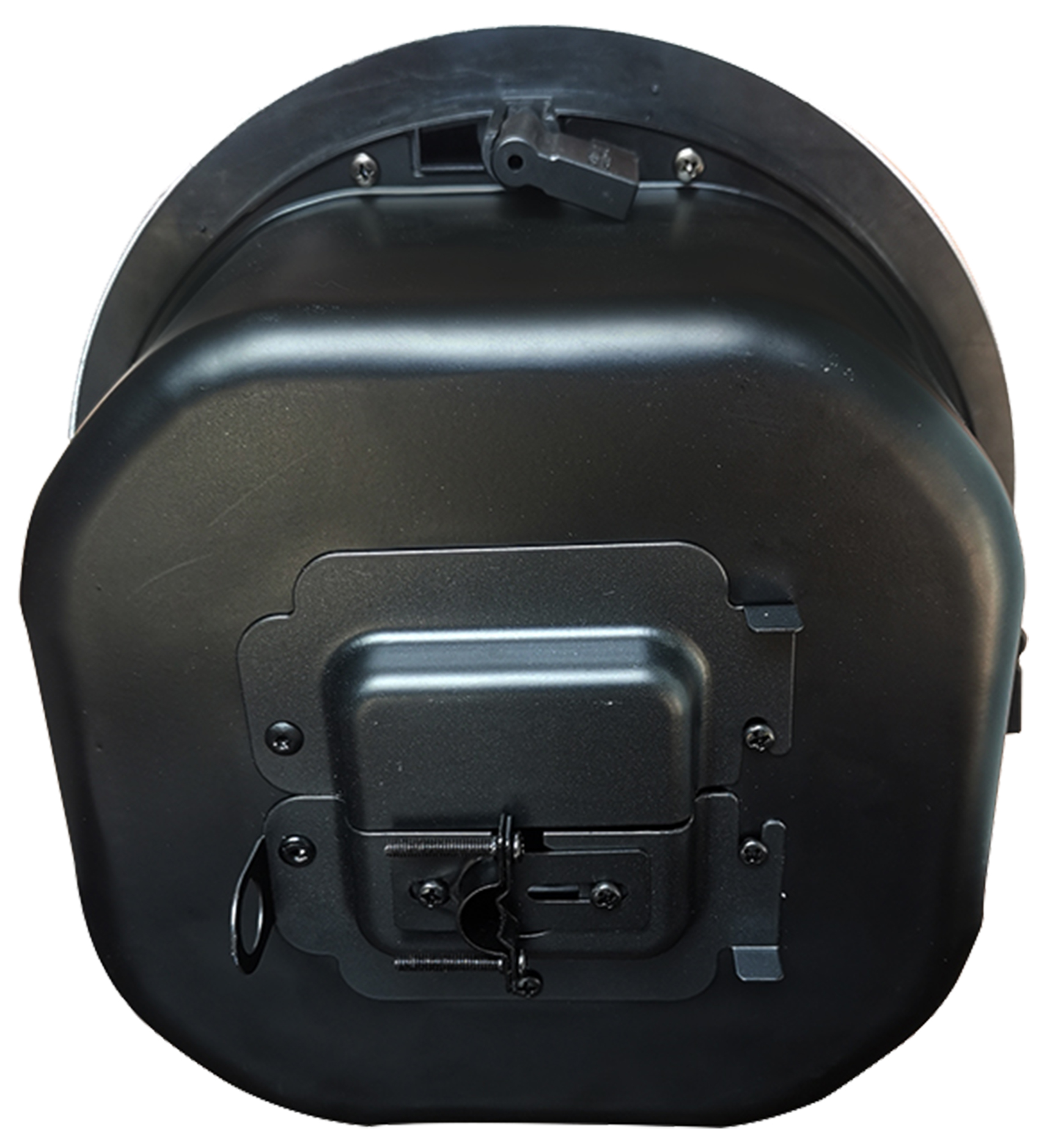

- Magnetic front grille; logo rotates 360 degrees; 4-pin screw terminal for daisy-chain wiring; steel fire-rated back can
- ABS housing; outside dimensions 10.83" (275 mm) diameter x 8.74" (222 mm) depth; cutout diameter 9.57" (243 mm)
