Stage 2x2D is a professional grade direct injection and network audio interface that handles every input scenario a working audio engineer is likely to encounter on stage, on location, or in an installation. The microphone preamp covers a continuous gain range of 60 to 4 dBu without pads while maintaining 20 dB of headroom at every setting, and the line input can accept signals all the way up to 44 dBu peak, making it compatible with 70V distributed amplifier systems that would clip anything less capable. The 1 megaohm Hi-Z input is optimised for guitar pickups, the XLR Di-Out is assignable from either input path, and Dante/AES67 networking with two channel analog to digital conversion makes it a natural fit for any modern networked audio infrastructure. Housed in a robust extruded aluminum case with recessed controls and removable rubber bumpers, it is built to take what touring and live production throw at it.
- High performance low noise mic, line, and Hi-Z preamps; mic input covers 60 to 4 dBu continuous gain with no pad and 20 dB headroom; line input accepts up to 44 dBu peak including 70V system levels

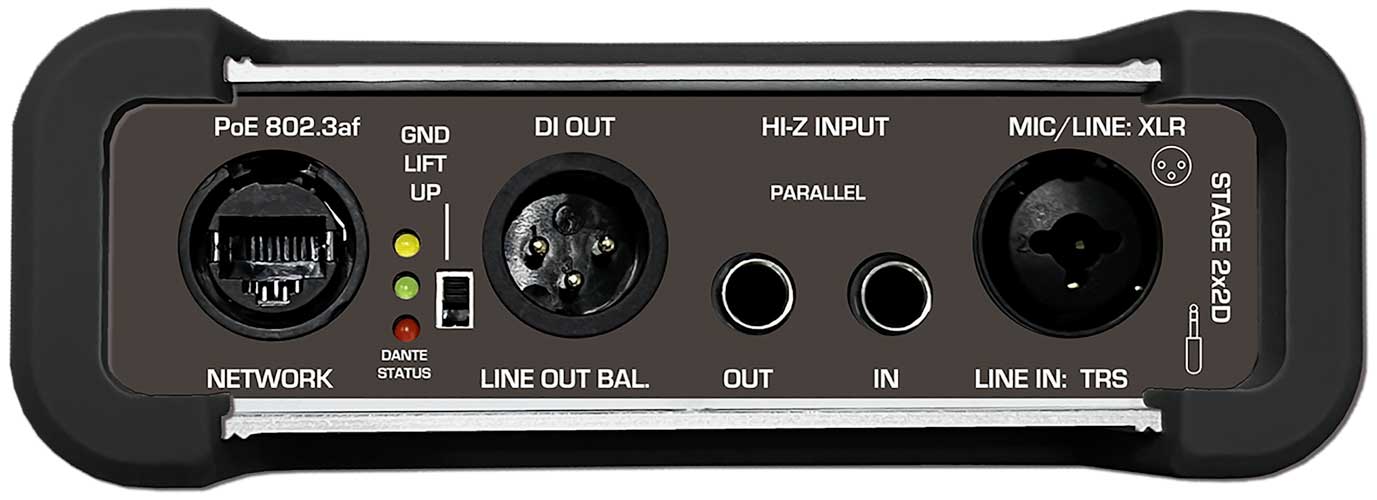

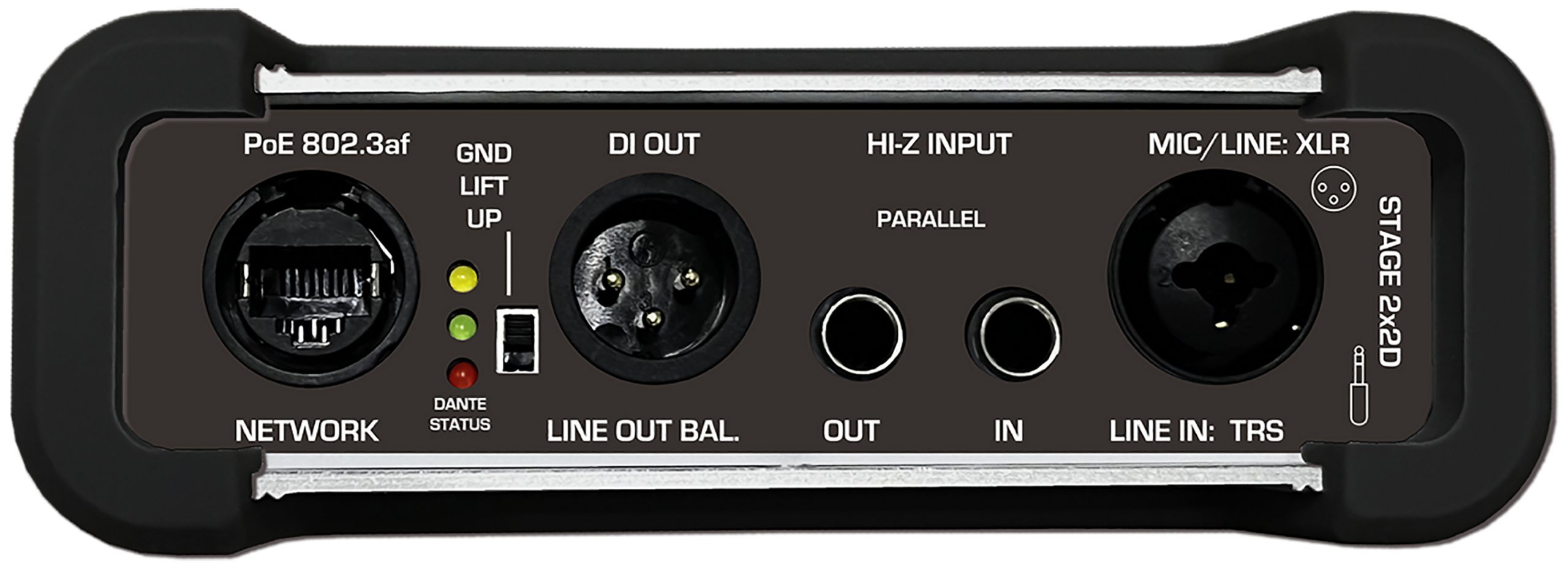

- Combo XLR / 1/4" mic/line input with selectable 48V phantom power; 1 megaohm Hi-Z instrument input; Di-Out XLR at 4 dBu selectable from Hi-Z or mic/line
- Two channel Dante/AES67 networked audio with two channel network return output; configurable as stereo or single channel balanced line output

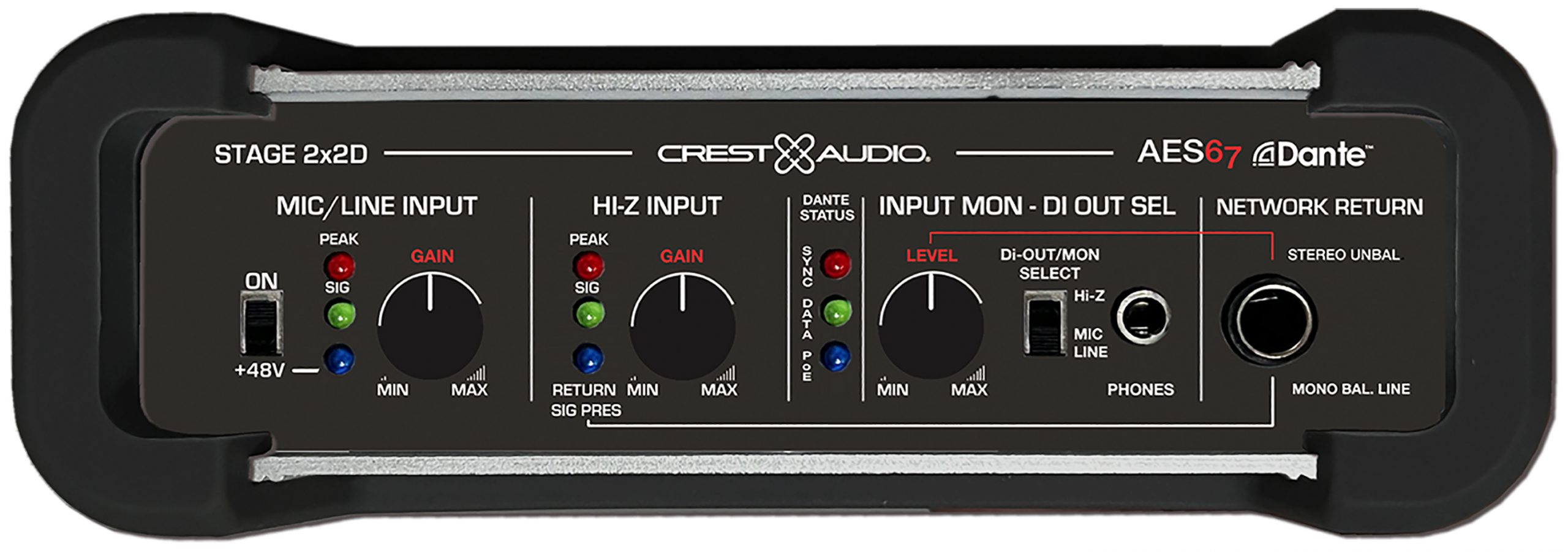

- IEEE 802.3af/at PoE powered; front panel signal present and peak LEDs; headphone output selection switch; ground lift on Di-Out; network status LEDs for PoE and data
- Extruded aluminum housing with recessed protected controls and connectors; removable rubber bumpers for touring; optional 1U single or dual rack mount kit available
