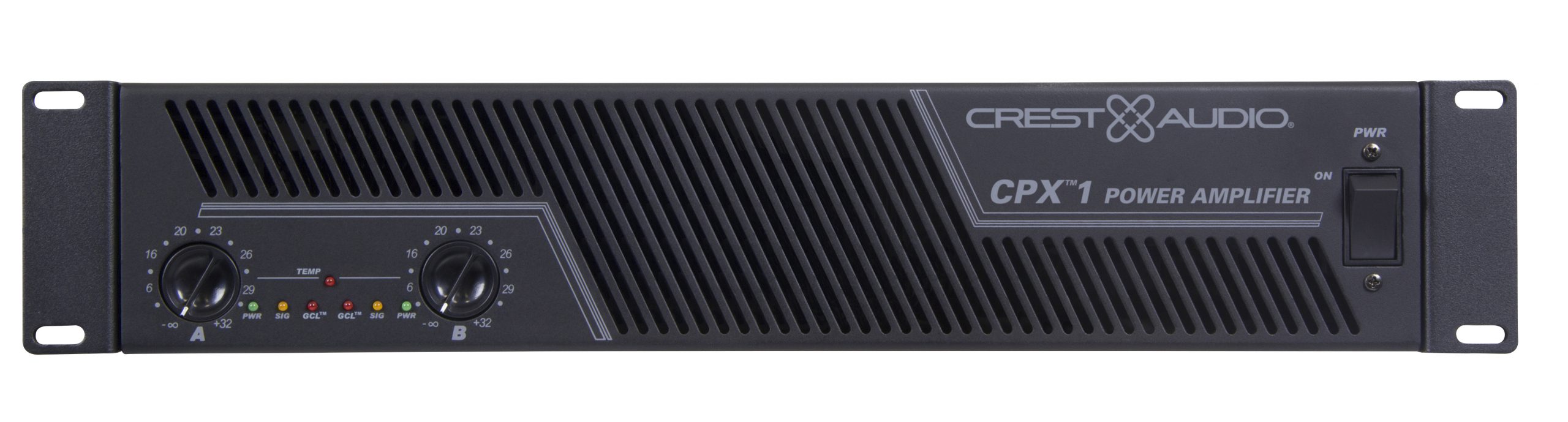

CPX 1 is the entry point into the CPX series, a range of professional amplifiers that brings Crest Audio's reputation for sound quality and reliability to a broader range of applications from mobile rigs and project studios to fixed installations and DJ setups. The proprietary GCL Gain Comparator Limiting system monitors input and output gain continuously, reducing signal transparently when distortion or excessive current conditions are detected, keeping your loudspeakers safe without interrupting the audio. Built-in 150 Hz Linkwitz-Riley crossover filters tuned for subwoofer use, a 40 Hz low cut filter, and 1/4" daisy chain outputs are all included, each with individual channel switching so you can configure the amp precisely for your application. Stereo and bridged mono operation, industry standard connectors, and a two speed DC fan for thermal management round out a feature set that covers most professional power amplification scenarios.
- Class AB topology; stereo: 480W at 4 Ohms / 300W at 2 Ohms / 290W at 8 Ohms per channel; bridged: 960W at 8 Ohms / 600W at 4 Ohms; minimum load 2 Ohms
- GCL Gain Comparator Limiting system with rear panel defeat switch; stereo and bridged mono mode selector; two speed DC fan
- Built-in 150 Hz Linkwitz-Riley crossover (24 dB/Oct) tuned for subs with individual channel in/out switches; built-in 40 Hz low cut filter with individual channel in/out switches

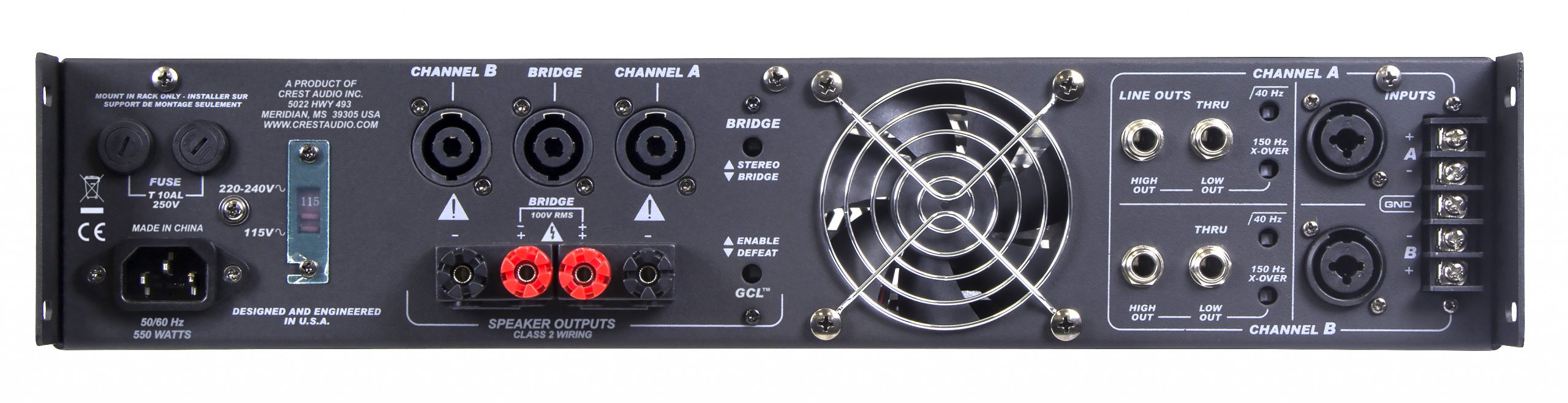

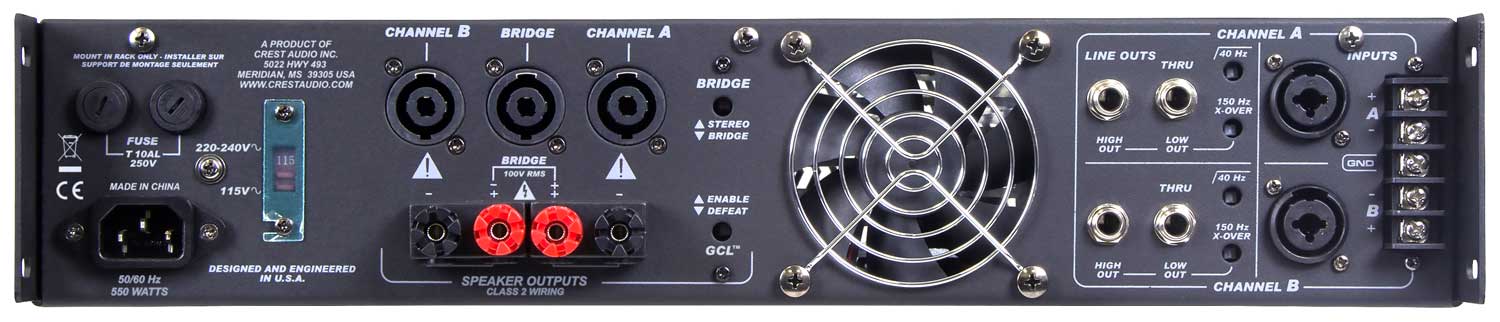

- Input connectors: barrier strip, 2x XLR / 1/4" Combo, 4x 1/4" jack; output connectors: 3x 4-pin Twist Lock and 2x binding post for channels A, B, and bridged mono; 1/4" daisy chain outputs
- Frequency response 12 Hz to 35 kHz (+0, -2 dB at 1W)
