CPX 2 steps up the output of the CPX series while keeping everything that makes the range a reliable choice for professional applications from mobile rigs and fixed installations to project studios and DJ setups. The GCL Gain Comparator Limiting system runs transparently in the background, monitoring input and output gain and stepping in quietly when distortion or excessive current conditions threaten your loudspeakers. Built-in 150 Hz Linkwitz-Riley crossover filters for subwoofer use and a 40 Hz low cut filter each have individual channel switching, giving you precise control over how the amp is configured for your specific system. Industry standard connectors, 1/4" daisy chain outputs, and a two speed DC fan ensure it integrates cleanly into professional setups of all kinds.
- Class AB topology; stereo: 690W at 4 Ohms / 450W at 2 Ohms / 430W at 8 Ohms per channel; bridged: 1,380W at 8 Ohms / 900W at 4 Ohms; minimum load 2 Ohms
- GCL Gain Comparator Limiting system with rear panel defeat switch; stereo and bridged mono mode selector; two speed DC fan
- Built-in 150 Hz Linkwitz-Riley crossover (24 dB/Oct) tuned for subs with individual channel in/out switches; built-in 40 Hz low cut filter with individual channel in/out switches

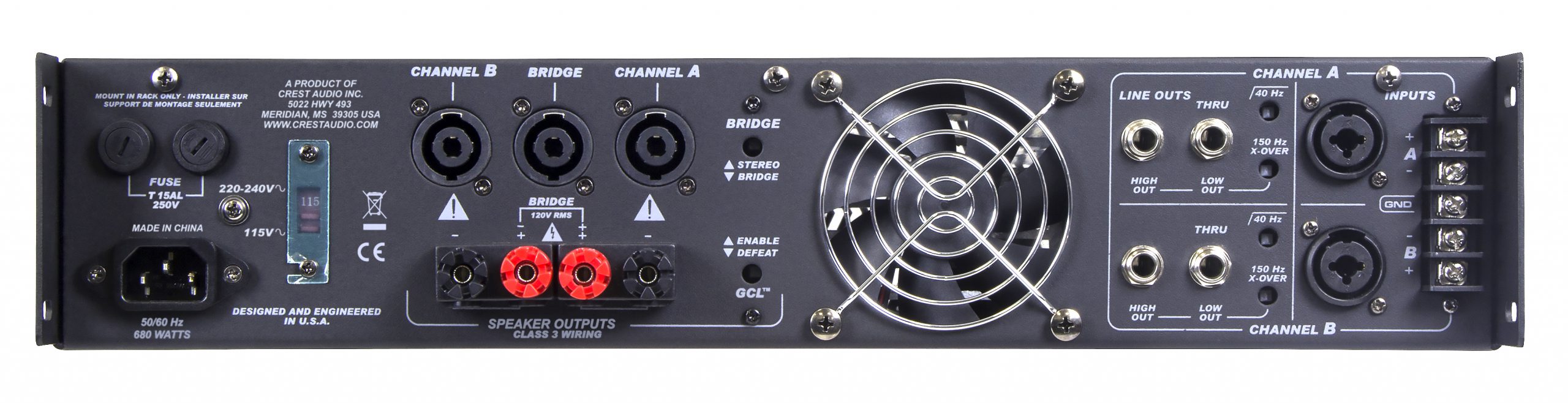

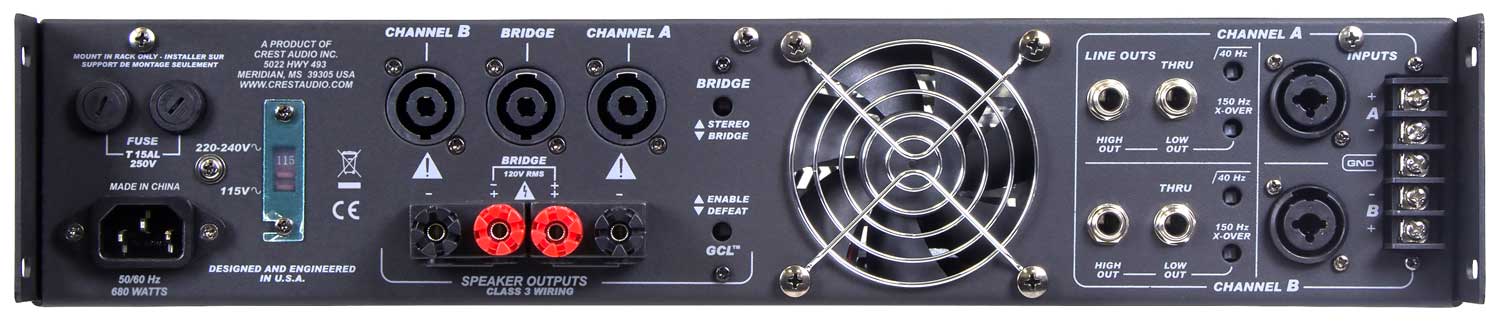

- Input connectors: 2x XLR / 1/4" Combo, 4x 1/4" jack; output connectors: 3x 4-pin Twist Lock and 2x binding post for channels A, B, and bridged mono; 1/4" daisy chain outputs
- Frequency response 12 Hz to 35 kHz (+0, -2 dB at 1W)
