CPX 3 brings Class H efficiency to the CPX series, stepping up the output capability significantly while maintaining the same professional feature set and reliable build quality the range is known for. The GCL Gain Comparator Limiting system monitors gain continuously and responds to distortion and excessive current conditions without any audible artefacts, keeping loudspeakers protected across extended high-output use. Built-in 150 Hz Linkwitz-Riley crossover filters with per-channel switching and a 40 Hz low cut filter give you onboard speaker management flexibility, while 1/4" daisy chain outputs make system expansion straightforward. Industry standard XLR / 1/4" combo inputs, Twist Lock and binding post outputs, and a two speed DC fan complete a professional spec that suits demanding touring and installation applications equally well.
- Class H topology; stereo: 1,250W at 4 Ohms / 625W at 2 Ohms / 750W at 8 Ohms per channel; bridged: 2,500W at 8 Ohms / 1,250W at 4 Ohms; minimum load 2 Ohms
- GCL Gain Comparator Limiting system with rear panel defeat switch; stereo and bridged mono mode selector; two speed DC fan
- Built-in 150 Hz Linkwitz-Riley crossover (24 dB/Oct) tuned for subs with individual channel in/out switches; built-in 40 Hz low cut filter with individual channel in/out switches

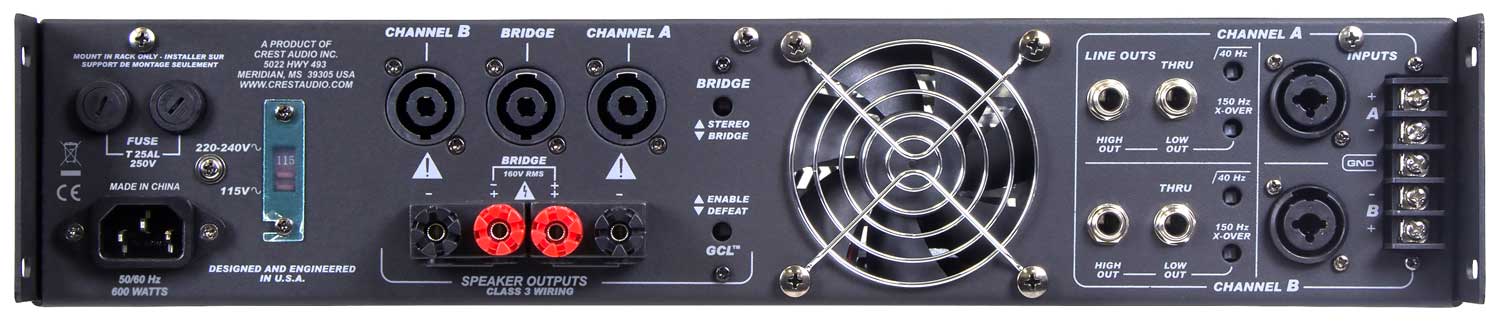

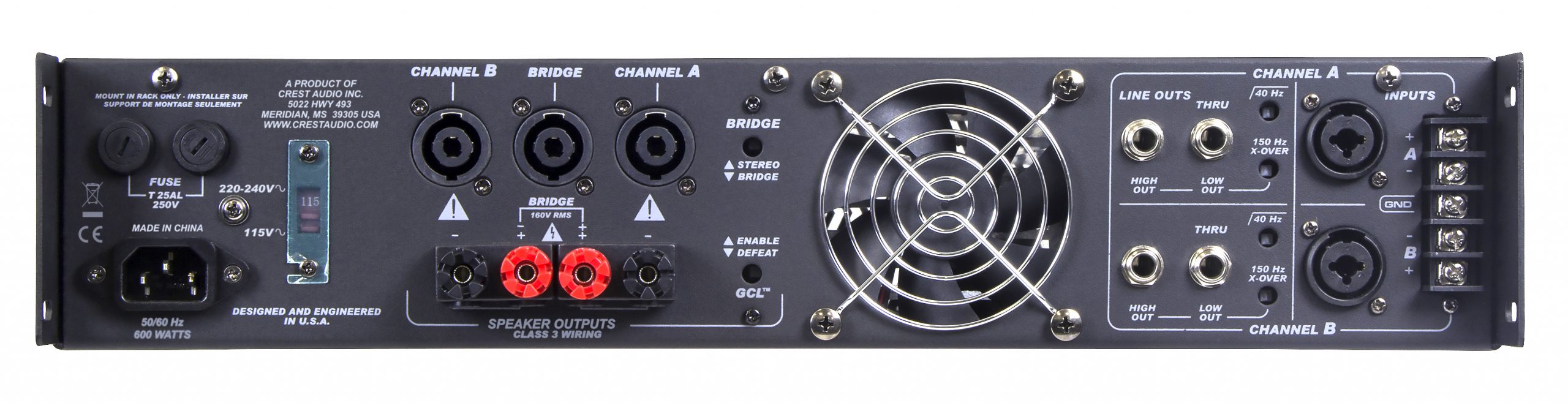

- Input connectors: 2x XLR / 1/4" Combo, 4x 1/4" jack; output connectors: 3x 4-pin Twist Lock and 2x binding post for channels A, B, and bridged mono; 1/4" daisy chain outputs
- Frequency response 12 Hz to 35 kHz (+0, -2 dB at 1W)
