IPA 2300 is a self contained mixer amplifier that handles both background music and paging from a single 2U rack unit, eliminating the need for separate mixing and amplification equipment in straightforward installation scenarios. Input 1 is an electronically balanced mic/line input via Euro style connector, and Input 2 is a line level input via dual RCA connectors, with the level sensing function on Input 1 automatically muting Input 2 whenever a mic signal exceeds the adjustable threshold, making paging priority seamless and setup free. The 300W Class D amplifier drives 4 Ohm, 25V, 70V, and 100V constant voltage outputs directly, a built-in high pass filter protects speaker transformers from low frequency overload, and the SPS speaker protection system monitors the output continuously. Bass and treble controls, a dual voltage selector for 120V or 240VAC operation, and front panel power, signal, and SPS LEDs keep installation and ongoing operation as uncomplicated as possible.
- 300W Class D power amplifier with 4 Ohm, 25V, 70V, and 100V constant voltage outputs; minimum load 4 Ohms; frequency response 65 Hz to 20 kHz (-3 dB)

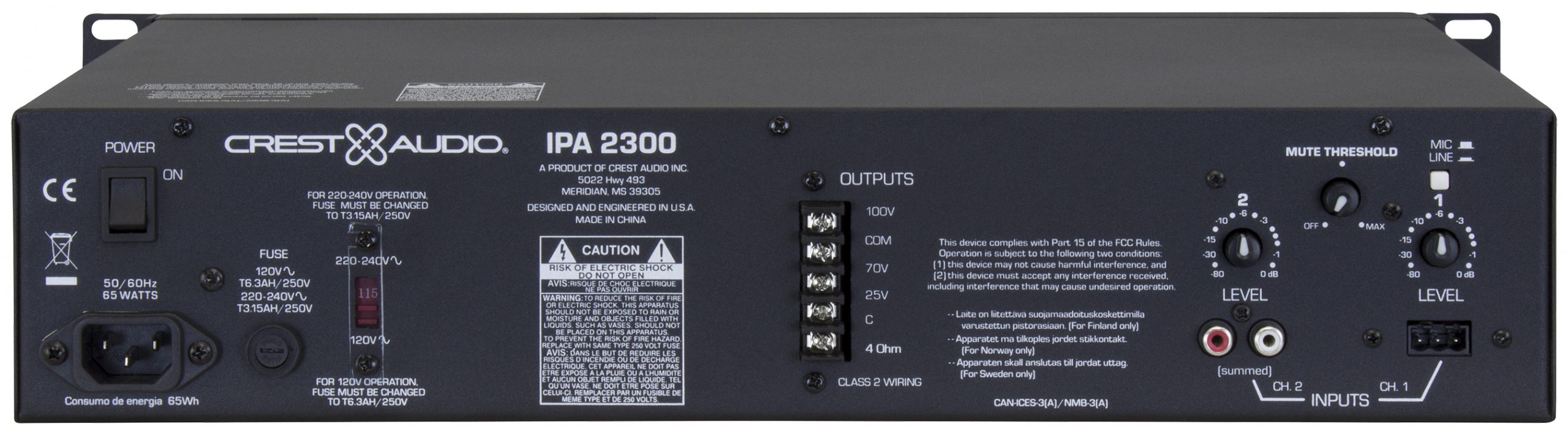

- Input 1: electronically balanced mic/line via Euro style connector with mic/line switch; Input 2: line level via dual RCA; Input 1 level sensing mutes Input 2 with adjustable threshold and defeat control
- SPS speaker protection system; high pass filter to protect speaker transformers from low frequency overload; bass and treble controls; input level controls

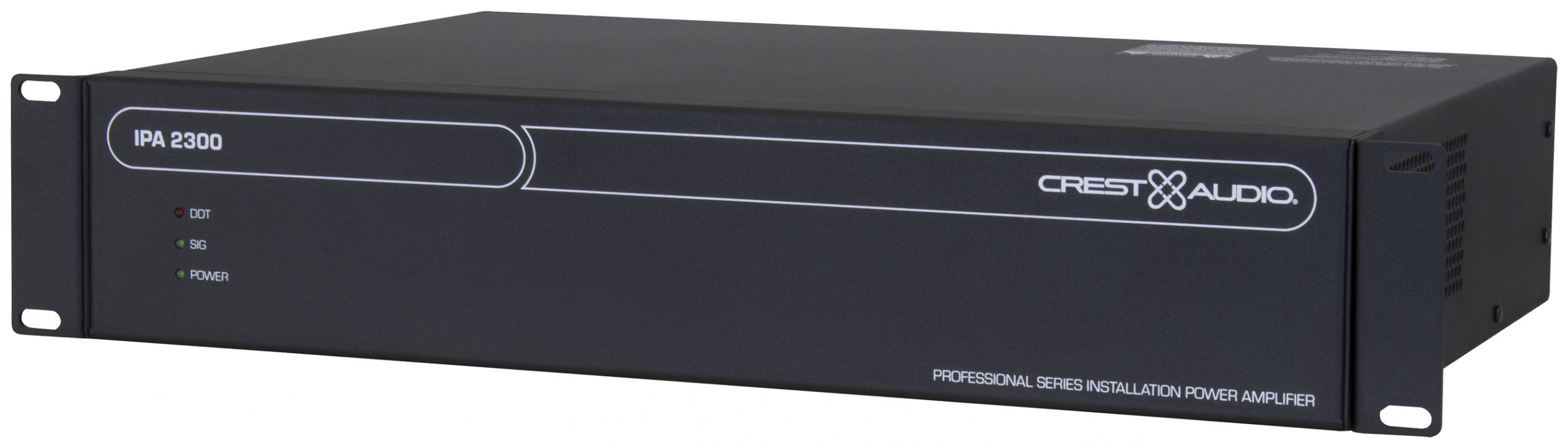

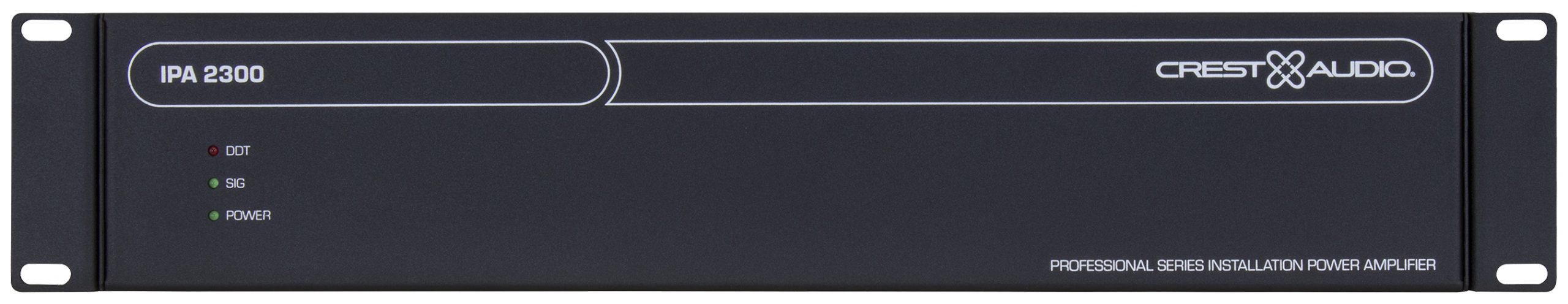

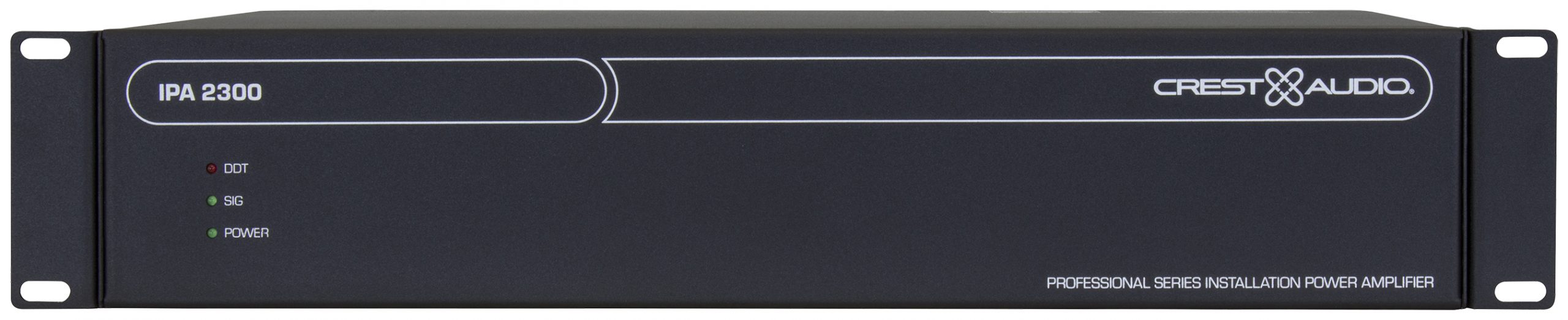

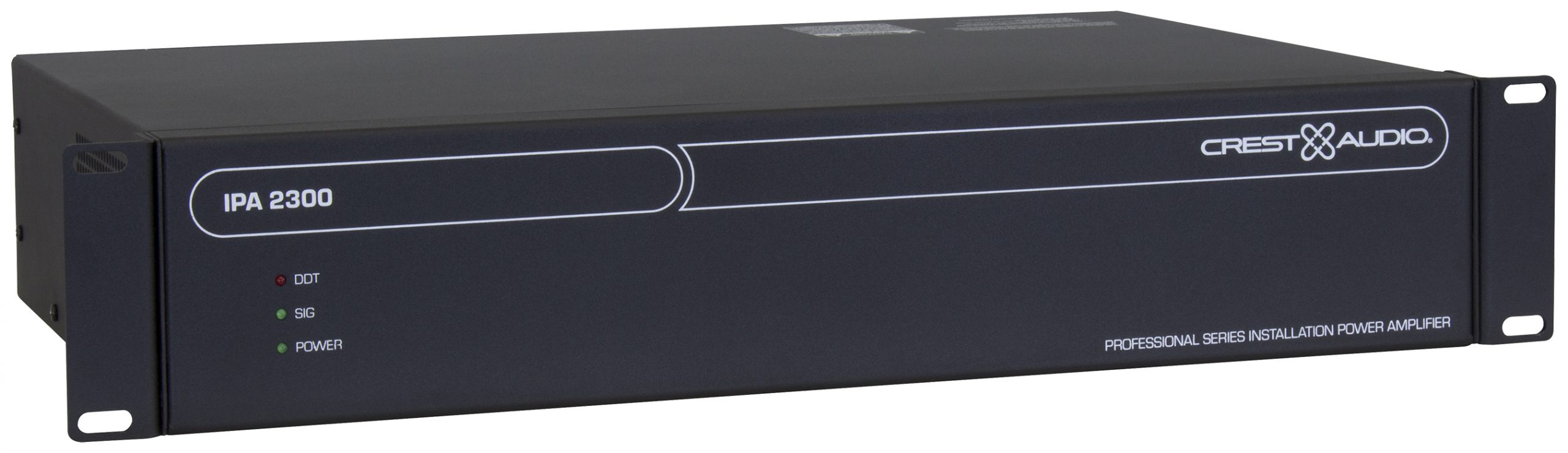

- Power, signal, and SPS indication LEDs; power switch; dual voltage selector for 120V or 240VAC 50/60 Hz; GPIO mute all relay
- 2U rack mount chassis
