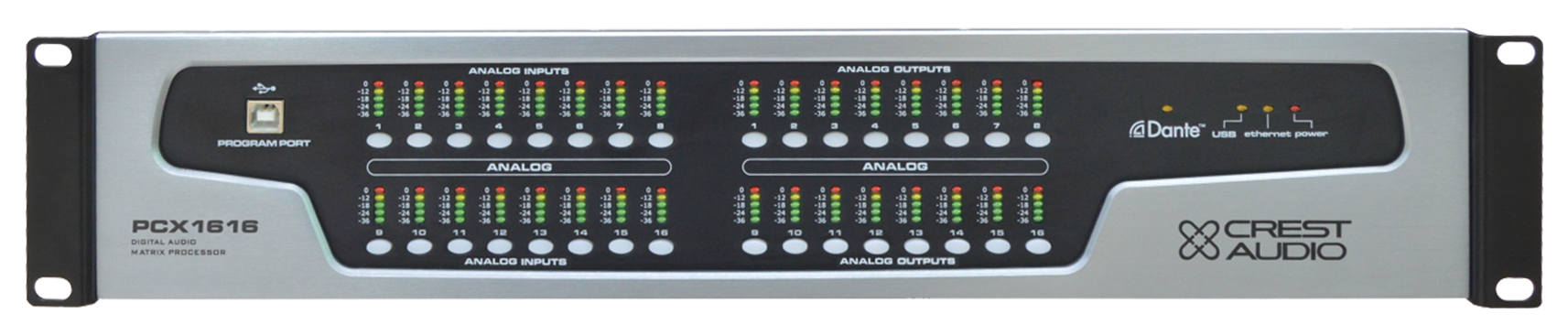

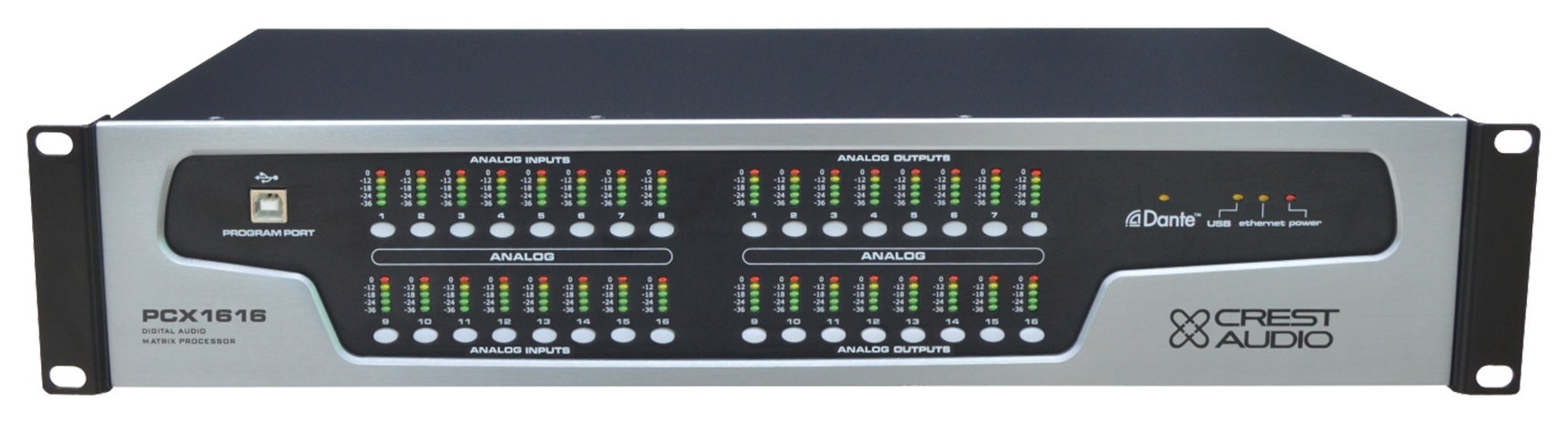

PCX 1616 is the highest channel count processor in the PCX range, supporting 32 inputs and 32 outputs through a fully flexible digital matrix where any input routes freely to any output. Sixteen local balanced Euroblock inputs and outputs handle direct analog connectivity, while an optional Dante network audio card extends this with a further 16 inputs and 16 outputs over Ethernet for fully networked large venue and installation deployments. Every input carries gain, gate, mute, low cut, HP filter, 5 band PEQ, polarity, link, and phantom power, while every output provides HP/LP filters, 5 band PEQ, gain, compressor/limiter, polarity, 680ms of delay, mute, and crossover filters. The PCX Editor Software supports up to 255 units simultaneously via USB, Ethernet, or serial connection, making it the right choice for multi processor installations across large venues.

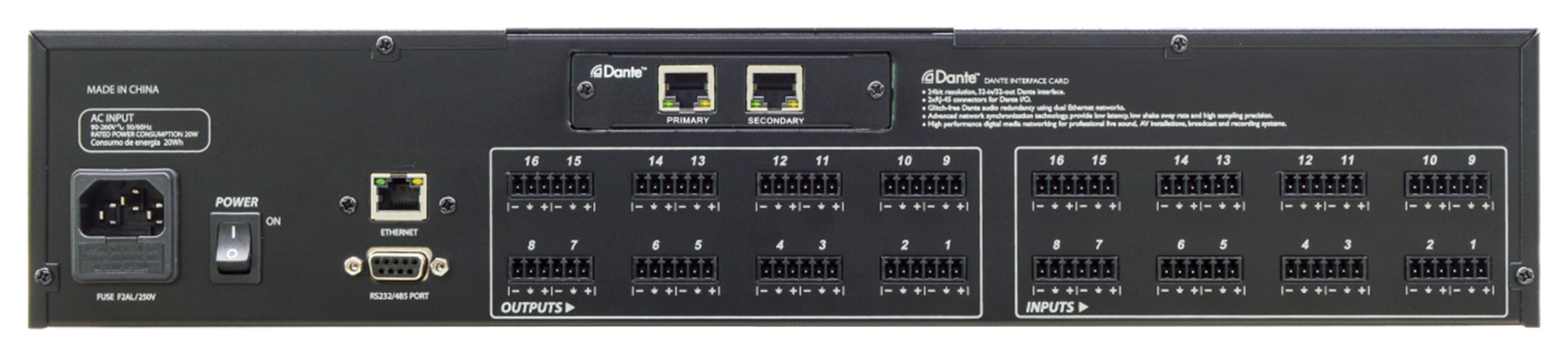

- 16 balanced analog Euroblock inputs and 16 balanced analog Euroblock outputs; optional Dante card adds 16 digital inputs and 16 digital outputs; maximum level +20 dBu; dynamic range greater than 110 dB (A weighted)
- Every input features gain, gate, mute, low cut, HP filter, 5 band PEQ, polarity, link, +48V phantom power (analog), and level; every output features HP/LP filters, 5 band PEQ, gain, compressor/limiter, polarity, 680ms delay, mute, and crossover filters
- Crossover and band pass filters: Butterworth, Bessel, or Linkwitz-Riley, 1st order (6 dB/Oct) to 8th order (48 dB/Oct); AUTOMIX with threshold, level, attack, and release time
- 96 kHz sample rate, 32 bit SHARC DSP, 24 bit Delta Sigma A/D and D/A converters; internal signal generator (sine, white noise, pink noise); 5 segment LED meters on all channels
- PCX Editor Software supports up to 255 units via USB, Ethernet, or serial DB9; channel linking for stereo operation; Ethernet and USB B control ports; security lock
