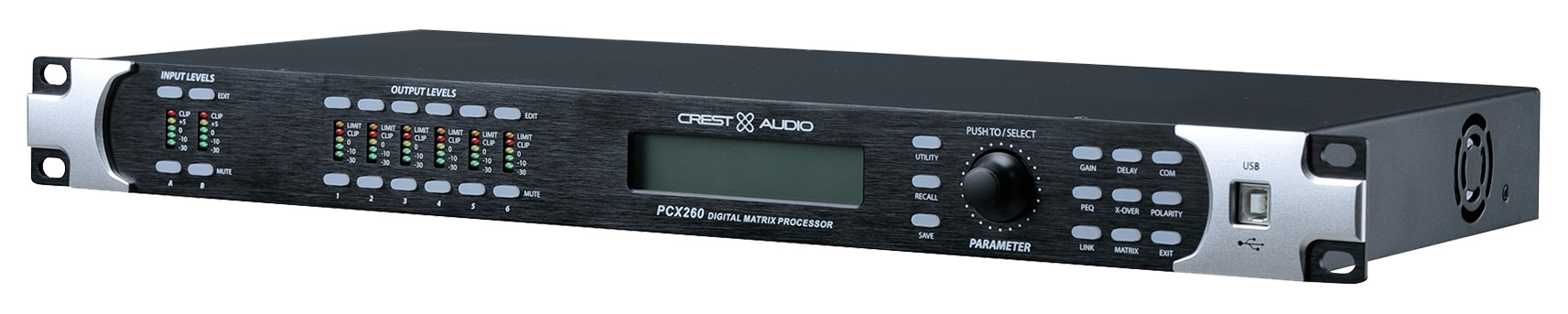

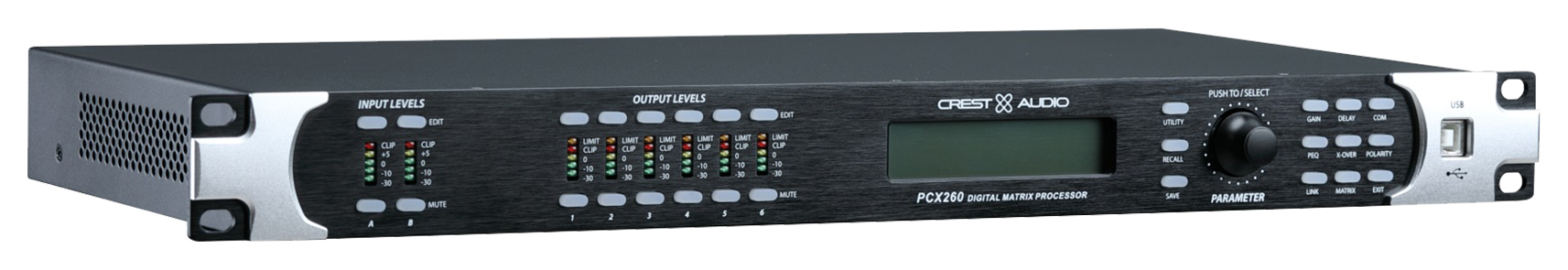

PCX 260 is a full featured digital matrix speaker management processor that lets you route either of its two balanced XLR inputs to any or all of its six outputs with complete flexibility. Every input carries gain, mute, HP/LP filters, 8 band PEQ, polarity, and up to 680ms of delay, while every output adds a 9 band PEQ, compressor/limiter, and the same delay and mute controls on top. Crossover and band pass filters cover Butterworth, Bessel, and Linkwitz-Riley alignments from 1st to 8th order, and an internal signal generator handles sine, white noise, and pink noise for system tuning. Front panel LCD and rotary encoder give you fast local control, while the Ethernet port and PCX Editor Software open up full remote configuration from a PC.

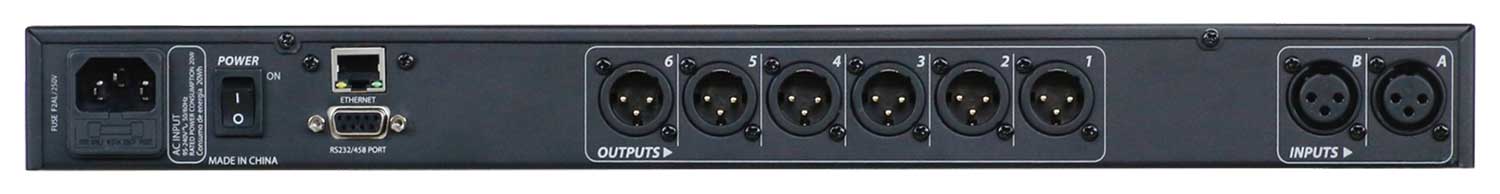

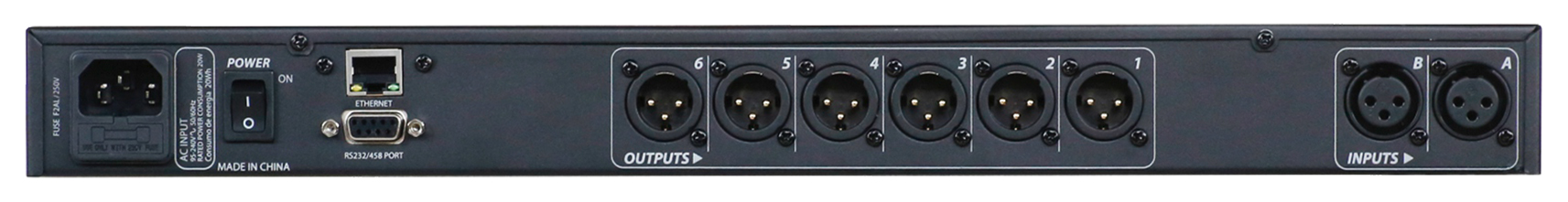

- 2 balanced XLR inputs and 6 balanced XLR outputs; maximum input and output level +20 dBu; dynamic range greater than 109 dB (A weighted) or 107 dB (unweighted)
- Every input features gain, mute, HP/LP filters, 8 band PEQ, polarity, and 680ms delay; every output adds 9 band PEQ, gain, compressor/limiter, polarity, 680ms delay, and mute
- Crossover and band pass filters: Butterworth, Bessel, or Linkwitz-Riley, 1st order (6 dB/Oct) to 8th order (48 dB/Oct); EQ types include PEQ, Low Shelf, Hi Shelf, Low Pass, High Pass, All Pass 1 and All Pass 2
- 96 kHz sample rate with 24 bit Delta Sigma A/D and D/A converters; internal signal generator (sine, white noise, pink noise); 5 segment LED meters on all inputs and outputs with limit indication

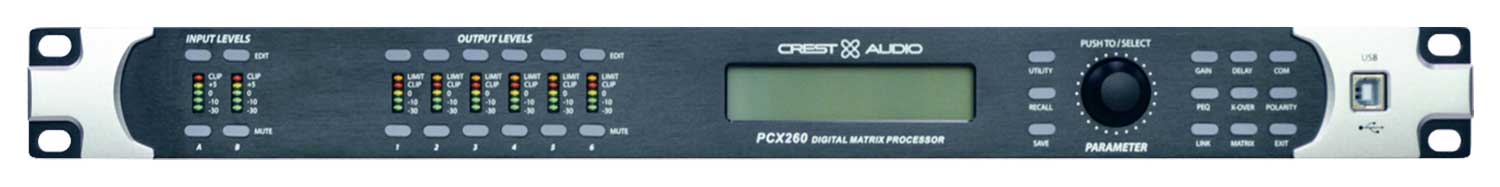

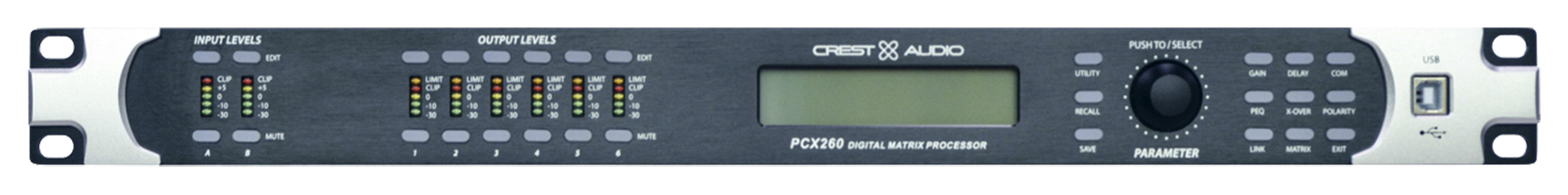

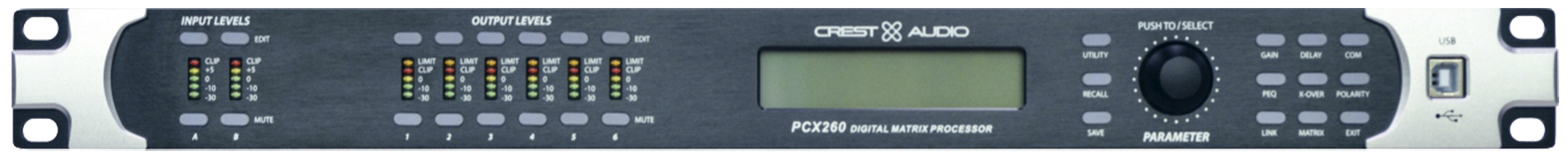

- Front panel LCD with rotary encoder and function buttons; Ethernet and USB B port for remote setup; PCX Editor Software for full PC based control; security lock
